Fish finder install on 12' Jon Boat


This topic has been archived. This means that you cannot reply to this topic.
15 replies to this topic

#1 Shawn OConnor

Shawn OConnor

    Hunting for 10+.

  • Members
  • PipPip
  • 62 posts

Posted August 09 2009 - 10:00 PM

I bought a eagle this weekend and plan on installing it this week.  Has anyone else done this?  I would love to see pictures.  Also, what do you do with the wire for the transducer?  Bring it up and over the back?  Here's a pic of the back of my boat.  Thank you for any help.

Attached Thumbnails

  • Boat_Back.JPG

Will not stop until I find a monster for the wall.

#2 Glenn

Glenn

    I love bass fishing!

  • BassResource.com Administrator
  • PipPipPipPipPipPipPipPipPip
  • 17,387 posts

Posted August 09 2009 - 11:46 PM

[movedhere] General Bass Fishing Forum [move by] Glenn.
The people that hate you, don't know you. They dislike the funhouse mirror image they have of you.

Please read the Forum FAQs

Join us:

Become a member for FREE!

Subscribe To Our Newsletter


Note that you can report content and alert moderators by clicking the "Report" link when viewing the content.

#3 Painter Dude

Painter Dude

    Wishin I was Fishin!

  • Members
  • PipPipPipPip
  • 296 posts

Posted August 10 2009 - 03:59 AM

Something like this would work for you  :(

http://www.basspro.c...0003000_250-3-4
<@{{{><
Catch Ya Later

#4 done

done

    I Love Bass Fishing!

  • Members
  • PipPipPipPipPipPip
  • 1,523 posts

Posted August 10 2009 - 05:29 AM

I had a Eagle Cuda set up on my Topper 14, I rigged up my own but was very similar to the on in the photo. The only difference was I bought a bicycle tire tube, cut it open and wrapped the aluminum in it to keep any friction with the hull down to a minimum.

The wire just run up over the back. Once i had it over the back I used some wire straps to keep it neat and clean from the back of the boat to the battery.

#5 Shawn OConnor

Shawn OConnor

    Hunting for 10+.

  • Members
  • PipPip
  • 62 posts

Posted August 10 2009 - 10:01 AM

Thank you for the info.  I wonder why they didn't try to sell me that at Bass pro when I bought it Saturday in Charlotte?  Yes, I told them I had just bought a topper 12 from the Bass Pro in Richmond.

So do most people just not drill holes through the transom and make sure they use a ton of sealant when mounting?  I've googled about every combo of words and not coming up with a lot of luck.
Will not stop until I find a monster for the wall.

#6 J Francho

J Francho

    Oink-Oink!

  • Global Moderator
  • PipPipPipPipPipPipPipPipPip
  • 19,582 posts

Posted August 10 2009 - 10:12 AM

I'd go with a permanent installation.  The manual shows you how.  No need for the bracket, unless you leave your boat on the shore, or fish from rentals.

Everything in moderation.

Please read the Forum FAQs

Join us: fishing-tips-fishing-knots-facebook.gif fishing-tips-fishing-knots-twitter.gif fishing-tips-fishing-knots-youtube.gif gplus-32.png

Become a member for FREE!

Subscribe To Our Newsletter


Note that you can report content and alert moderators by pressing the "Report" link when viewing the content.


#7 Jig Man

Jig Man

    I Love Bass Fishing!

  • Members
  • PipPipPipPipPipPipPip
  • 3,101 posts

Posted August 10 2009 - 10:35 AM

I'd mount the xducer on a board and screw the board into the boat above the water line. Lunds always came with one included so you never had to deal with leaks.

https://www.firstcho...-plate-910.aspx

#8 Daniel My Brother

Daniel My Brother

    Cape Girardeau, Mo

  • Members
  • PipPipPipPipPipPip
  • 1,603 posts

Posted August 10 2009 - 10:37 AM

I'd go with a permanent installation. The manual shows you how. No need for the bracket, unless you leave your boat on the shore, or fish from rentals.

Agreed. People tend to freak out over the thought of drilling holes in their boat, but you have nothing to fear.
Fishing Southern Illinois and Southeast Missouri

#9 Shawn OConnor

Shawn OConnor

    Hunting for 10+.

  • Members
  • PipPip
  • 62 posts

Posted August 10 2009 - 10:47 AM

Great, thanks guys.  I like the idea of the board with the hole drilled above the water line.

Has anyone actually seen one or have a picture of one with the transducer mounted directly to the transom like the manual suggests?  Like I said, not having a ton of luck finding pics with my searchs.  Is this because most of the boats sank before they could take a picture?  :(
Will not stop until I find a monster for the wall.

#10 done

done

    I Love Bass Fishing!

  • Members
  • PipPipPipPipPipPip
  • 1,523 posts

Posted August 10 2009 - 12:09 PM

before you drill the hole, make sure it does not impact your warranty. Some manufacturers will put fine print in there about voiding the warranty once you drill through the hull.

You are probably alright, just make sure first.

#11 done

done

    I Love Bass Fishing!

  • Members
  • PipPipPipPipPipPip
  • 1,523 posts

Posted August 10 2009 - 12:11 PM

One other thing, how big is that motor? I had an 8 and despite reassurances from the dude I bought it from, I had to significantly reinforce the transom in mine to prevent cracks from forming.

#12 Wayne P.

Wayne P.

    I'm wacky about wacky !!!!!

  • Members
  • PipPipPipPipPipPipPipPip
  • 5,938 posts

Posted August 10 2009 - 12:41 PM

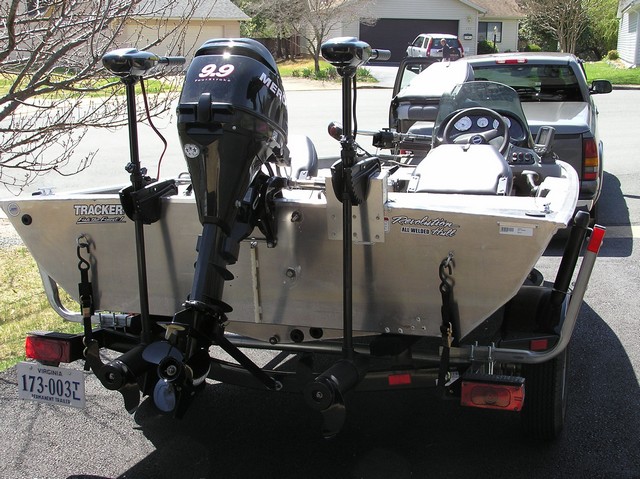

Tracker aluminum bass boats come from the factory with a transom mount transducer screwed directly to the hull. Where I fish mostly, it only lasted until the second trip there. The screws at the bottom with the white outlines is were it was mounted. I now use a shoot-thru so the stumps won't claim any more.
If you screw it to your hull, use marine grade caulking as a sealer and it will last forever.
I mounted a transom transducer on my former 12' jon boat in the same location-a picture of that installation is a little too dark to see it well though.

Attached Thumbnails

  • Tracker4.jpg


#13 Shawn OConnor

Shawn OConnor

    Hunting for 10+.

  • Members
  • PipPip
  • 62 posts

Posted August 10 2009 - 01:03 PM

Awesome, thanks Wayne.  I may try mine up a little higher than directly even with the bottom of the boat (like 1/2 inch).  I'm going to head to Greentop this afternoon because I broke my second St. Croix rod out there and see if they have any wisdom.  I'll likely try the install tonight.  There are no mounting holes on the Tracker Toppers.  See pics.

Attached Thumbnails

  • DSC00466.JPG

Will not stop until I find a monster for the wall.

#14 Shawn OConnor

Shawn OConnor

    Hunting for 10+.

  • Members
  • PipPip
  • 62 posts

Posted August 10 2009 - 01:05 PM

Here another of the area I plan on drilling the holes for the transducer.  The sheet metal on these boats isn't very thick.  I think I will add a piece of plywood to strengthen the inside.

Attached Thumbnails

  • DSC00467.JPG

Will not stop until I find a monster for the wall.

#15 Wayne P.

Wayne P.

    I'm wacky about wacky !!!!!

  • Members
  • PipPipPipPipPipPipPipPip
  • 5,938 posts

Posted August 10 2009 - 01:38 PM

I you don't mount the transducer with the mid point even with the hull bottom (like the instructions indicate), you will not get a depth reading when the boat is on plane. Also pay attention to the rivet locations so you can keep the water flow from those away from the transducer location if you want on-plane operation.
