With all the recent talk concerning reel cleaning, I thought I'd give a quick and easy photo tutorial on doing a speedy bearing job. A clean bearing is a happy bearing.

I'm using a Shimano Curado 200E5 as the test subject. Patient is about six months old.

Before you do anything at all, obtain a schematic for the reel.

First, if you don't have a can of this, head to Lowe's, Home Depot or your local hardware store and grab a can. It will be the best $7 you spend this winter.



Second, remove the palm sideplate and spool. In the palm sideplate, you'll find the first spool support bearing.

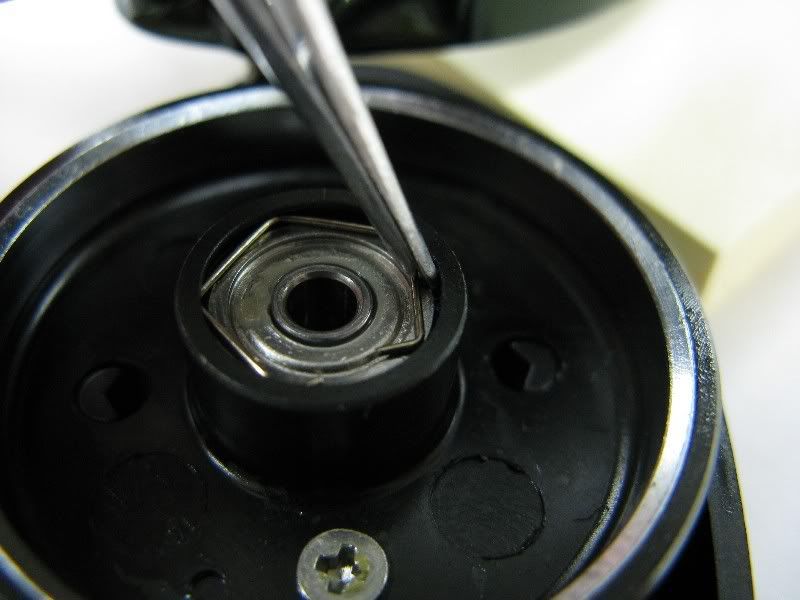

Carefully remove the retaining clip (CAREFUL!, these things can fly far away).

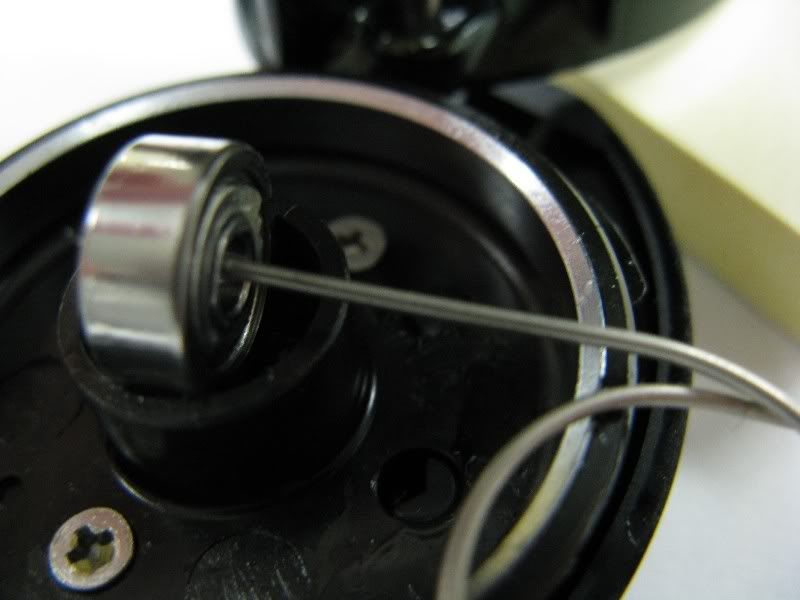

Next you will need a tool to remove the bearing from it's housing. On the top is a small paper clip that has been expertly engineered for this task. On the bottom is a tool Jimzee gave me.




Here you'll see the bearing removed from it's housing.




Here I'm holding the bearing by it's hub with a pair of lab forceps.




I use small glass jars to soak the bearings. Baby food jars or caper jars are perfect. Just make sure it has a tight-fitting lid so the acetone doesn't evaporate.



Next you'll need to remove the other spool support bearing. In the Shimano, it is located under the spool tension knob.



Carefully remove that spring...



And remove the bearing in the same manner as referenced above. Place into the jar of acetone.

Some reels may have bearing supported knobs. If this is the case, removal is quite easy.

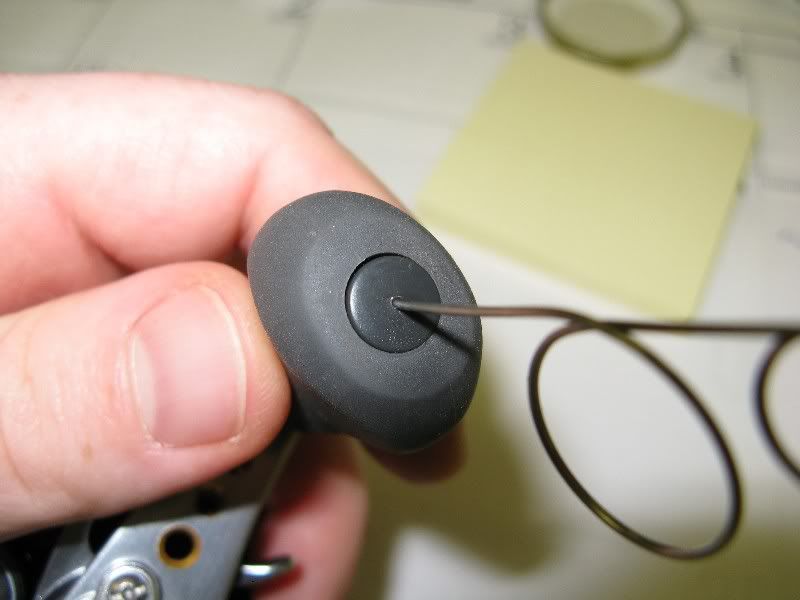

Using the same tool from above, remove the knob cap to reveal the knob nut.


http://i93.photobucket.com/albums/l53/blpjr77/reelclean11.jpg

These will be reverse threaded, so make sure you don't bugger the slot when removing.

Once the knob is removed, you can remove the bearing.

http://i93.photobucket.com/albums/l53/blpjr77/reelclean12.jpg

Remove the bearing, wipe off the grease and pop into the acetone bath.

http://i93.photobucket.com/albums/l53/blpjr77/reelclean13.jpg

Make sure you don't lose the washer under the knob nut.

http://i93.photobucket.com/albums/l53/blpjr77/reelclean14.jpg

Soak the bearings for 8-10 hours. I generally change the acetone 2-3 times for each set of bearings, depending on how dirty they are. After an hour or so, you'll see a lot of suspended white solids in the acetone. When that happens, remove the bearings, dump the acetone, wipe the jar, refill and put the bearings back into their chemical bath.

More to come later...
