Hello everyone,

                           I recently purchased my first baitcaster and noticed my line roller (levelwind?) doesn't move back and forth sometimes creating build up on one side?   Any ideas why?   line too tight? not tight enough? too light of a lure?  Thank you for any help.    Reel is a Kastking Assassin w/50 lb braid, mono backing, fluorocarbon leader.

Share this post


Link to post
Share on other sites

Defective pawl or level wind gear.

Tom

Share this post


Link to post
Share on other sites

When I was shopping at Cabela's for reels a couple of months ago, most of the display reels had the anti-theft device attached in such a way that it blocked the guide from going all the way to the left side of its travel.  Picking one up and cranking couldn't help but do some damage to the level wind mechanism.  Since they didn't have any like what I was looking for in the box, they lost a sale that day.



I will either go back in the spring when they begin to build up some summer stock, or I will hit BPS next time I'm in Denver and do my shopping there.  I prefer buying hands on to going online for something like this (besides, then I don't have to explain to the wife why I'm buying another reel until I've already had it for a while).  That way I can check out the main functions and know that it works before I leave the parking lot.

  • Thanks 1

Share this post


Link to post
Share on other sites

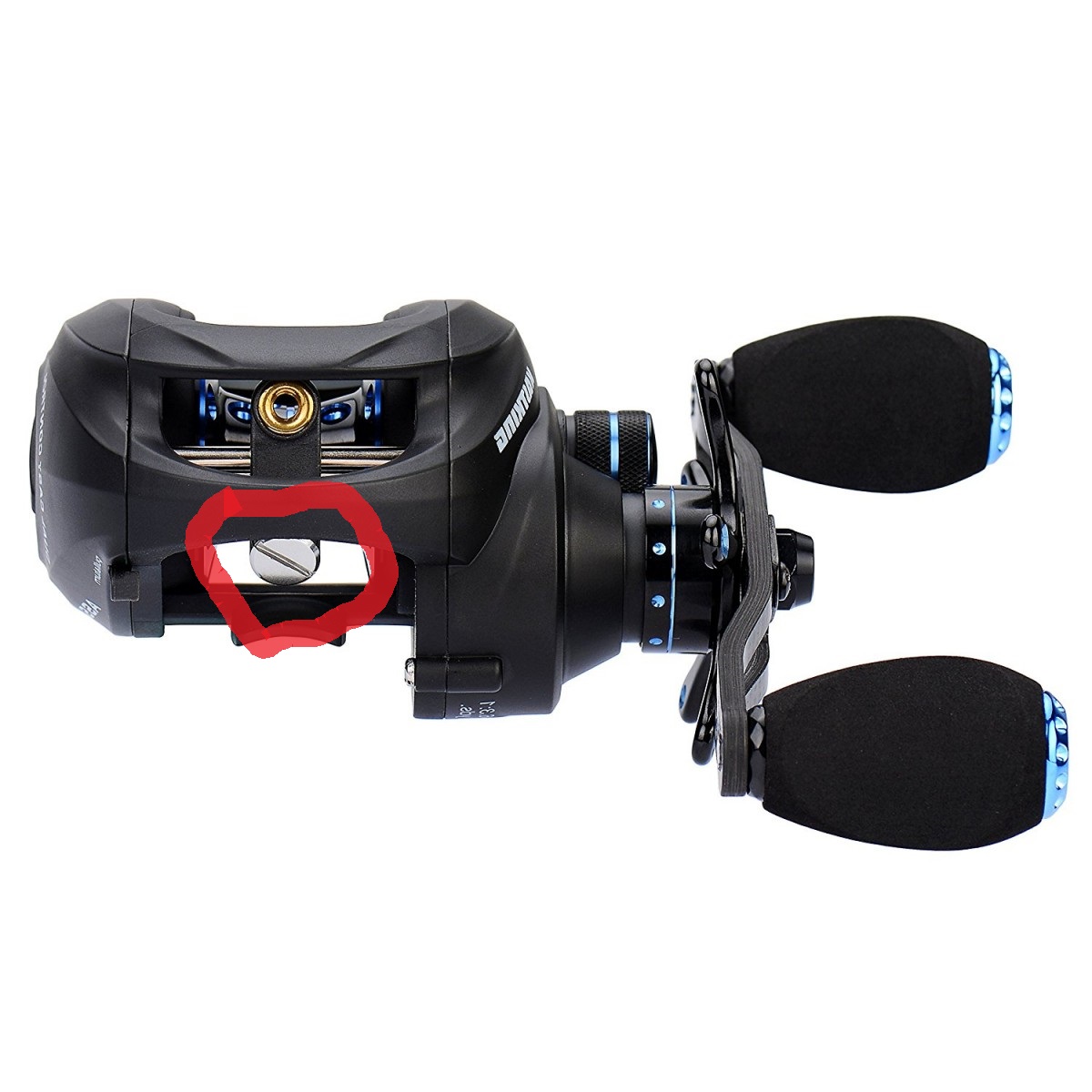

I'm an idiot......I figured it out.   There is a nut underneath the line guide which was loose!.......Glad I don't have to return it! Love the reel.

  • Like 2

Share this post


Link to post
Share on other sites
15 hours ago, Ed Stumpfl said:

I'm an idiot......I figured it out.   There is a nut underneath the line guide which was loose!.......Glad I don't have to return it! Love the reel.

That’s not being an idiot. That’s being a hands on trouble shooter who examined, diagnosed, and solved the problem. If you ask me that’s being smart. Hats off to you!

  • Like 4
  • Thanks 1

Share this post


Link to post
Share on other sites

The nut holds the pawl not the level wind worm gear.

Tom

Share this post


Link to post
Share on other sites

It tightened the line guide tighter against the axle (not sure the proper name).  I could literally slide the guide back and forth before with my finger, now it sits snug.   Is the pawl the line guide itself?


Share this post


Link to post
Share on other sites
2 hours ago, Ed Stumpfl said:

It tightened the line guide tighter against the axle (not sure the proper name).  I could literally slide the guide back and forth before with my finger, now it sits snug.   Is the pawl the line guide itself?


The pawl is a small piece with what looks like a blade on one end.  The "blade" rides in the grooves on the worm gear.  Each end of the grooves has a curve that turns the pawl into the groove going the other way, so it goes back and forth and lays the line on the spool evenly.  With the nut loose, the pawl wasn't engaging the worm gear.  Good catch on the fix!

Share this post


Link to post
Share on other sites

I have had the same problem on one of my baitcasters. I was glad it was a simple fix. I check that nut from time to time to make sure its tight.



Hope you enjoy the Assassin. It's my favorite reel.
