Humminbird 570

Recommended Posts

hey. i got a humminbird 570 fish finder, without DI. i got it installed on saturday, and used it for the first time on sunday. it read the temperature and depth, but i couldnt get any more information than that. it didnt show the bottom profile, structure, fish, anythin, just a white line with occasional black vertical lines....

we realized when we are at full speed, the fishfinder is almost out of the water... however, the finder is already low on the transom, it actually hangs a little under the transom, maybe half transducer is below....

so, i will move it lower to prevent it from coming out of the water.... but besides that what could the problem be?? maybe the angle is not set correctly??

by the way, i had to route the transducer cable parallel to some electrical cables, but tried to separate them, and didnt use the same ties, in order to prevent a possible interference. i also let the transducer cable hang loose while the electrical cables are tight, so there is not much contact between them... i dont know if this works or not, but thought it couldnt hurt....

thanx!

Share this post


Link to post
Share on other sites

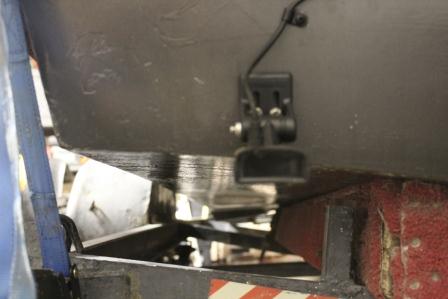

The number one installation criteria is the transducer face has to have a smooth non-aerated water flow across face work properly all the time. If you send me two pictures of your transducer installation; one from the side and the other straight behind it from a low angle so I can see some of the hull bottom. I can critique it.

Angle could be an issue, hull location can be an issue too.

purdum43@aol.com

Share this post


Link to post
Share on other sites

thanx!! ill see if i can take them today because the boat is at my friend´s house... we are planning a 2 day fishing trip for this weekend, so i would like to have it ready by then...

Share this post


Link to post
Share on other sites

You didn't do the photo that shows some of the hull bottom, What is forward of the transducer has a bearing on performance.

What boat brand and model is it?

Share this post


Link to post
Share on other sites

hey. the boat is a kingfisher, 17´ i believe, they say its from 1981 but the motor plate is from 1977 so i think the boat is also from that year... the unit performs the same (or should i say, does not works) when moving fast, slow, or completely stopped....

and, i just requested my friend the picture, when he gets home he will send it to me...

Share this post


Link to post
Share on other sites

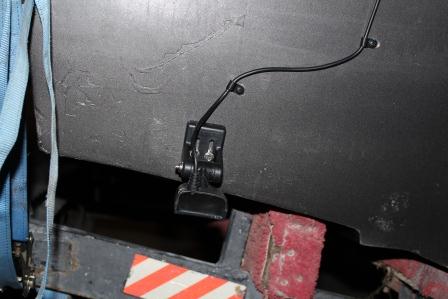

That looks good as far a hull smoothness. A better location is where it looks like one has been before to the right of the trailer bunk. Still put a little downward tilt on trailing end of the transducer. The Humminbird transom transducers are not as hydrodynamic as the Lowrance torpedo shaped ones are.

Share this post


Link to post
Share on other sites

not an expert but with the fish finders Ive had, ive had the opposite problem, surface noise would put allot of clutter of the screen and out of the water it would find more fish than in the water.. ive sent sonar all over my backyard when i first got the thing and there are allot of lunkers back there depth reading would be all over the place ... even out of the water and in your driveway that thing should be buzzing low water depth 2 feet...

i mounted mine using an old trolling motor mount, took the motor out put a pipe in there attached the transducer to the end of the pipe ran the cable up the pipe to the unit and now i can lower it into the water a good foot below everything making noise, that got rid of the clutter and bad readings and made it more accurate but if i raise it up to the surface or pull it out of the water it finds lots of fish and stuff.

so i have no clue why your having the problem your having with it, id say call the toll free tech support and see what they say?

good luck

Share this post


Link to post
Share on other sites

i remeber using my fishfinder little 110 buddy pordable as a fish finding wand... i had that thing out of the holded and aiming it all over the place looking for fish more than it was in the strait down position,, that thing was a 360 degree fish finding machine..

Share this post


Link to post
Share on other sites

thanx for the input!!

the reason i put it there and not where i removed the old transducer, is because on the instructions it said to measure at least 15" from the end of the prop to the transducer... so right now the transducer is at 15", the old location was about 11" from the prop...

so, what do you suggets?? should i move it to the original position, and tilt it a little more downwards??

Share this post


Link to post
Share on other sites

well it does sound like you need to get it more in the water and off the surface, but it also sounds like you need to push buttons and play with the settings, increace gain/sensitivity, is the beam on wide or narrow,, does it split screan with bottom lock that gives you the best bottom views etc etc etc....

make something up as a temporary mount that you can move around and etc... just sticking it at the old spot might not be any good either if it starts getting clutter from the engine boat hull etc...

Share this post


Link to post
Share on other sites

thanx tony!! this is the first fish finder i have seen, so i dont know how to adjust it properly.... i played with it a little bit last weekend when i installed it, but i increased/decreased sensitivity, and pushed every button and access every option it has, and i didnt get any improvement... thats when i began thinking the problem was more in the transducer or cable, rather than on the settings, as i couldnt get a bottom view, not even when moving only with the trolling motor or completely stopped...

Share this post


Link to post
Share on other sites

well re-set it to factory setting first there should be a button for that.... make sure to wait between adjustments also, sometimes there a little lag time between adjustments before they take affect... also put something down in the water should pick up a jig as a little spot that moves up and down and toss somthing big like an ancor it should pick that up all the way to the bottom if it only picks it up here and there on the way down increase scoll speed and senitivity till you can see it fall all the way down etc...

Share this post


Link to post
Share on other sites

The unit will perform very well with the factory settings. You just need to install the transducer correctly for the best performance for your hull.

The 15" suggestion is for inboard type boats where the propeller is forward of the transom.

Share this post


Link to post
Share on other sites

thanx!!

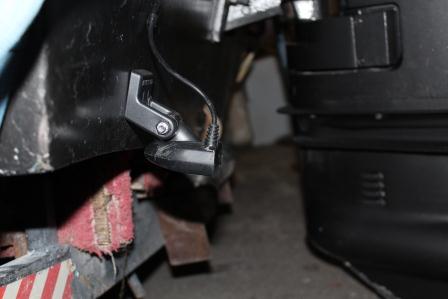

so, what do you suggest?? to first place the transducer where the original one was, a little more to the right as can be seen on the first pics?? should i also lower it more, or angle it more or something?? and then return to Factory settings (Default)??

Share this post


Link to post
Share on other sites

I have this same unit installed on a 16' Nitro. My transducer is mounted on the starboard(right) side of the boat, it looks like mine may be a little lower than yours, and it looks like yours needs to be rotated more so that the skinny end is pointed a little more towards the ground.

Share this post


Link to post
Share on other sites

thanx, ill lower it a little more tonight and see if that helps... what do you mean "the skinny end"?? i understand tilt it so the rear part gets lower, maybe only a notch on the adjustment washers, right??

Share this post


Link to post
Share on other sites

thanx!!

so, what do you suggest?? to first place the transducer where the original one was, a little more to the right as can be seen on the first pics?? should i also lower it more, or angle it more or something?? and then return to Factory settings (Default)??

Read my first post today again. As far as the total height, you start with the position described in the installation instructions.

Re-read your transducer installation instructions and pay attention to the diagrams and measurements.

If you don't have them: http://store.humminbird.com/media/document/M_XNT_ALL.pdf

Yes, the Default settings.

Share this post


Link to post
Share on other sites

thanx, ill lower it a little more tonight and see if that helps... what do you mean "the skinny end"?? i understand tilt it so the rear part gets lower, maybe only a notch on the adjustment washers, right??

Yes, that is correct. It will probaly be only one notch like you said. I have an old trolling motor transducer that does the same thing...It only displays a flat bar across the top, and nothing else. I believe it is finally new tranducer time for it.

Share this post


Link to post
Share on other sites

Howdy, I am the one who sold you the unit. I just came across this thread. I do believe you have the transducer installed too high, but you should still be getting some kind of bottom reading and you shouldn't be getting any vertical lines. It had been a while since I used that unit, and I tested it before I shipped it, but I wonder if the transducer is bad. Let me do some research and I may need to switch out the transducer for you. If you will have some patience I will make it right, which I know is a lot to ask - when you buy something it should work. I hate that it isn't working right for you.
