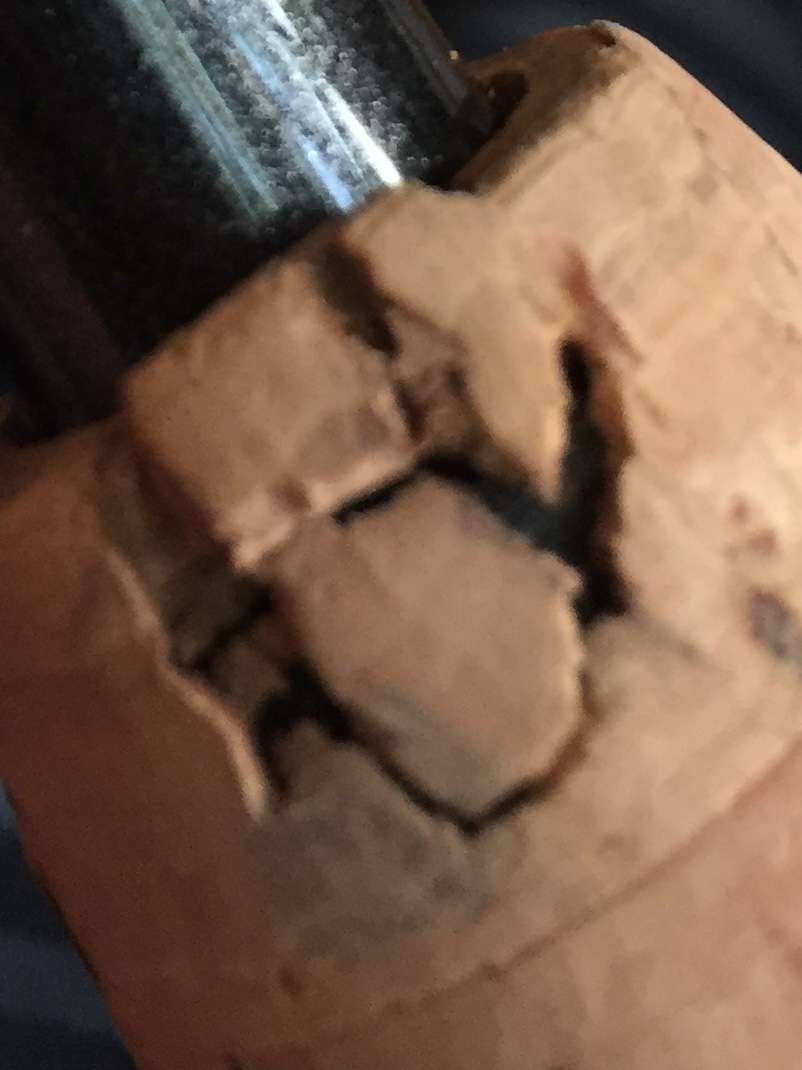

As I was cleaning my rod some chunks of cork cane off, I was thinking about getting some wood glue and mixing it with some cork shavings to use as glue so that I could put it back together. Any suggestions?


Share this post


Link to post
Share on other sites

It's worth a try, very well could work, and could save you from a bigger repair.  To replace the piece without taking the rod apart it is possible to take a piece of cork, turn its OD to the right dimensions, bore to fit the blank, then split it, glue it to the blank using tape to hold it tightly in place while the glue dries, then sand the surface to make it smooth.  The split will not be that apparent.  I would use waterproof wood glue or epoxy for adhesive.



Also, if you don't like the looks after you repair this, use Winn grip tape to get a new, tacky, and attractive surface.

Share this post


Link to post
Share on other sites

Get a small can of wood filler and use it.  I've done it several times over the years before I started covering my handles with shrink tubing.  Wood glue will most likely dissolve when you get it wet.

Share this post


Link to post
Share on other sites

Titebond III is waterproof and is used by many rod builders to glue cork rings together for grips.  Epoxy is waterproof as well, but clean up will be easier with Titebond III or similar waterproof glue.  I think the job calls for something that will contribute to structure since it appears that the existing cork is not in good shape.  You'd like it to not just fill, but to provide more structure.  Wood filler would be the easiest, but not the best, IMO.



Please let us know how you handled it and how it turned out.

Share this post


Link to post
Share on other sites

Looks like this may be a foregrip with really poor fit and finish, an awful lot of daylight there, it may have a tape arbor just behind where the break is to take up the slop which left you no support on the end. Add cheapest grade of cork material, and Bob's Your Uncle as the Brits say. Since it's on the end, the fix is easier for you to do using the insructions from above. EVA is a great option, but if you can't spin the rod, shaping is more difficult.

  • Like 1

Share this post


Link to post
Share on other sites

Wood filler is enough for pits but this cork is comprised. I'd replace the whole ring.

Share this post


Link to post
Share on other sites

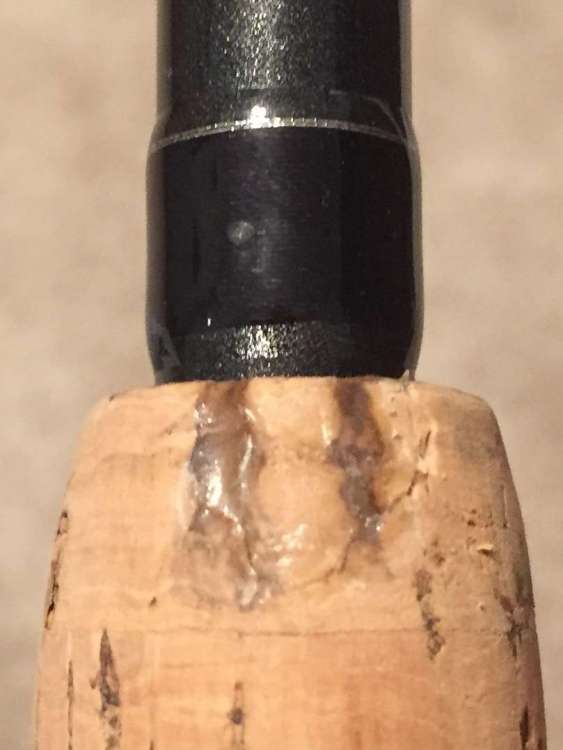

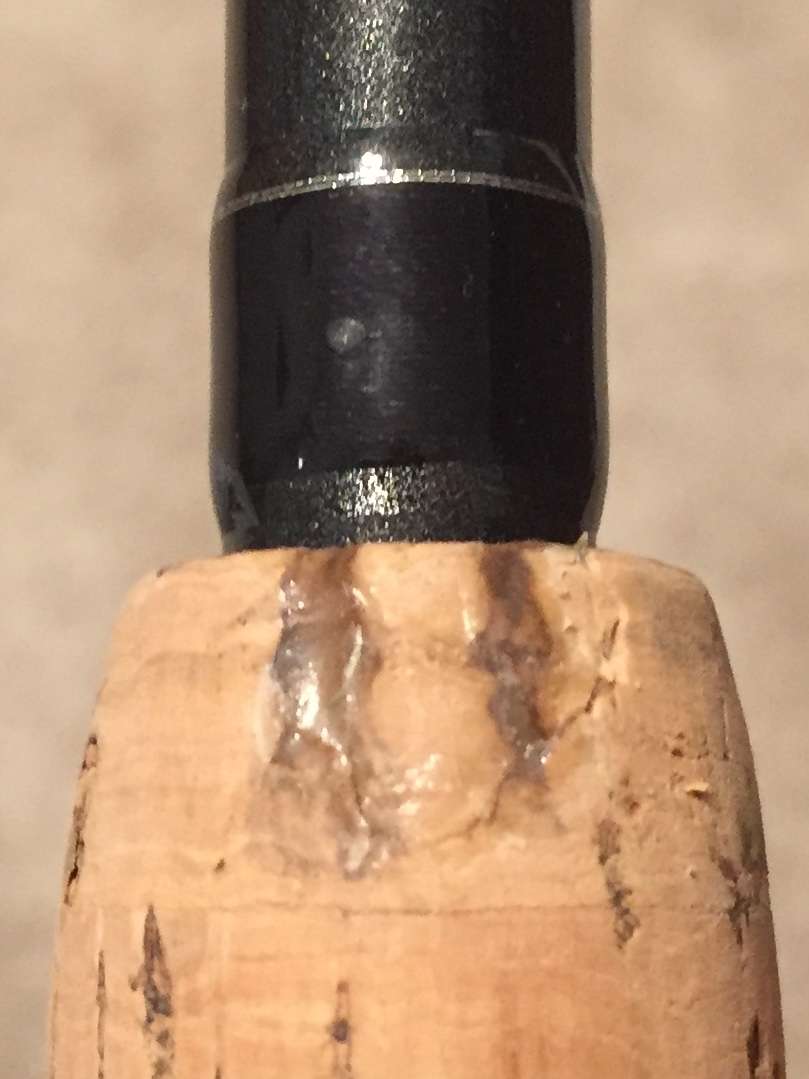

48324C75-C3B5-4CE5-A988-C25D36957866.thumb.jpeg.354a9b9cee6476a474956bdffb0a30be.jpegThanks guys, I ended up buying the titebond iii and took those cork chunks coming off out, I then glued the sides and put then back in. I filled the remaining holes with the glue as well. Here’s how it turned out, looks good to me 🙂

  • Like 1

Share this post


Link to post
Share on other sites

I cannot see the area where the cork meets the blank, but I presume you sealed that area well.



Considering what you started with, I think it came out very well.  Should give long service.

Share this post


Link to post
Share on other sites

Now if you get some shrink tubing from The Mud Hole you can cover it and it will last as long as you will.

Share this post


Link to post
Share on other sites

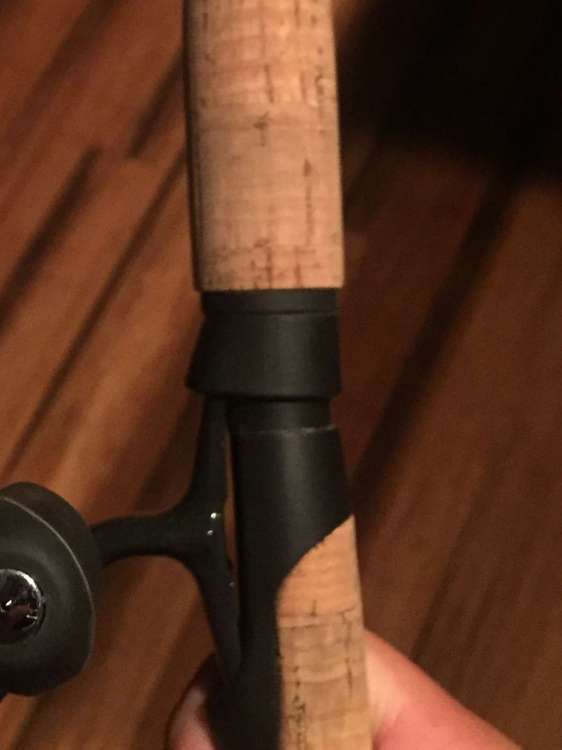

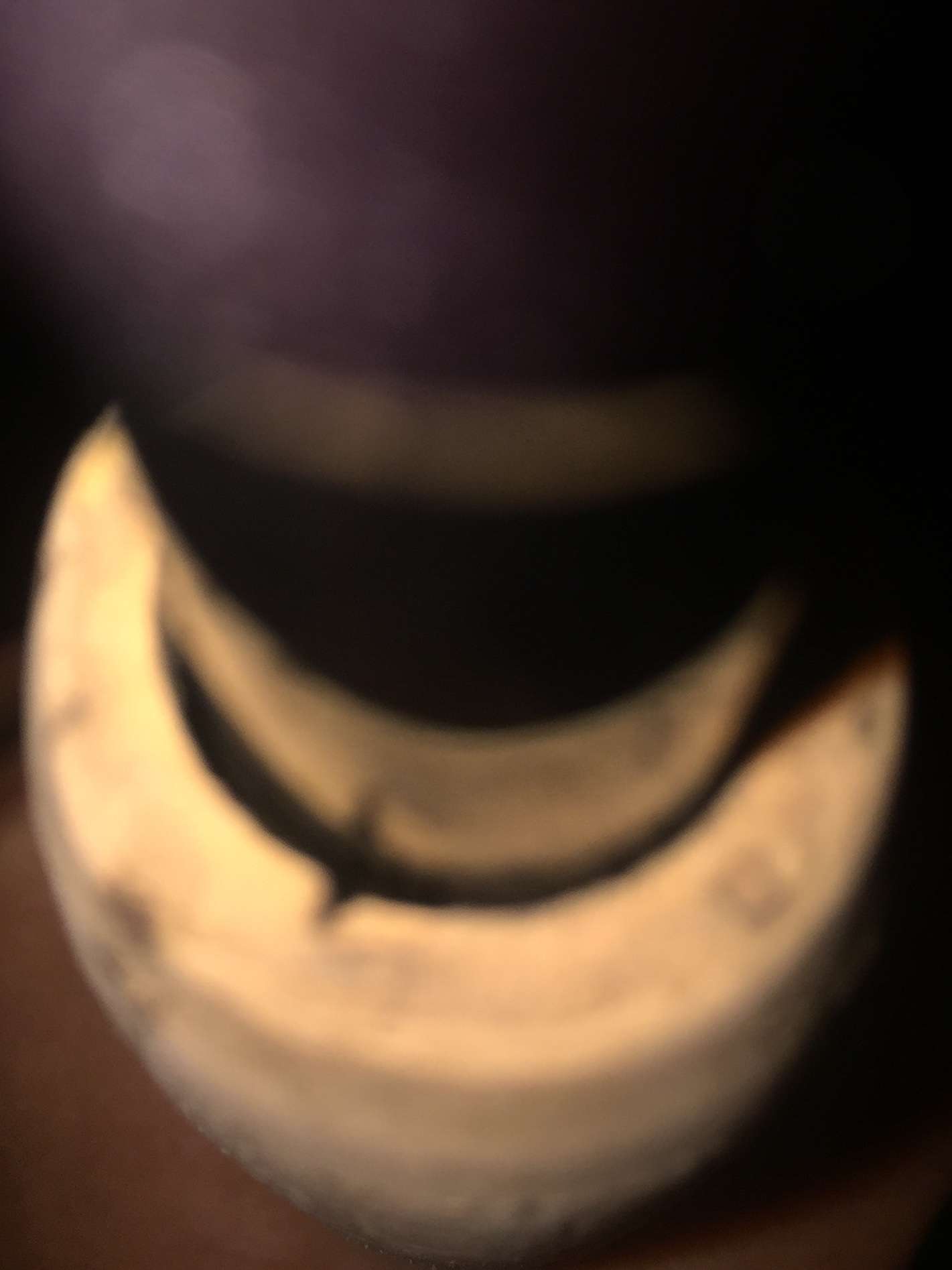

The cork doesn’t actually meet the blank on the rod ( second picture ), the whole cork on the top price screws to tighten for the reel seat ( first picture ). That’s why the cork fell off, bad design. It’s left in unsupported in the top for a couple cm’s. Thanks guys



  • Like 1

Share this post


Link to post
Share on other sites

Oh yes, I get it.  Should have been designed with a sleeve in it.

Share this post


Link to post
Share on other sites

Looks like you have a Fuji-SK2-Spinning-Casting-Graphite-Hood-KSKSS. When tightening the hood, tighten from the lower part of the lock down cork (toward the reel foot). Another good cork fix, cork shavings & Elmers gold wood glue, Roughly sand any cork for shavings.
