Stephen Selph

My new JDM Antares DC handle feel off

29 posts in this topic

So I got a good deal on a 2016 Antres DC about a month ago from a guy on Ebay which seemed to be functioning really well until yesterday.I was reeling in a 3 pound largemouth, then the handle just literally fell off. I caught the handle before it fell into the water, and I have the drag star as well. I found a parts diagram online here...So it looks like I need parts 1,2&3.

Edit..That's the 2007 version of my reel. Where can I find the 2016 version, and where can I buy the parts? I'm new to JDM reels, and it doesn't sound like I have  a US warranty. Thanks guys for any help. I love this reel, and I need it functioning asap.


Share this post


Link to post
Share on other sites

Stephen, I'd contact Jun Sonoda @japantackle.com

3 people like this

Share this post


Link to post
Share on other sites
5 minutes ago, J._Bricker said:

Stephen, I'd contact Jun Sonoda @japantackle.com

Will do, thanks for your help. It looked like the part 3 from that diagram. Chances are pretty low I could find that part here in the US right?

Share this post


Link to post
Share on other sites

Glad to be of help Stephen, Shimano USA would probably be the other option I'd explore. Due to the time difference with Japan, Jun could probably email you an answer by the time you put on a pot of coffee tomorrow morning

1 person likes this

Share this post


Link to post
Share on other sites

I would contact the tackle trap for that. Probably could get you it quicker. Its just the drive shaft nut and cover/screw. Have them source you them and you can use any nut as long as its the correct size to get you by.

2 people like this

Share this post


Link to post
Share on other sites

How on earth... Not going to question it. Just make sure the drive shaft isnt stripped, if it isnt, just get the new parts like mentioned.

Share this post


Link to post
Share on other sites

Those parts are identical to the USDM Calais DC. Part numbers BNT3616, BNT3617 and BNT3618. Shimano or Southwestern Parts will have these.

The reel comes with a special socket (BNT3660) that is needed to tighten the handle nut.

Shimano Calais 200DC.pdf

1 person likes this

Share this post


Link to post
Share on other sites

A 10 mm is all you need for the nut ......

1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, Maico1 said:

A 10 mm is all you need for the nut ......

 I wanted to say this as well but I wasn't 100% if shimano and Daiwa both shared a 10 mm nut. I thought I read Shimano was 11 mm but I wasn't certain.I thought I read Shimano was 11 mm but I wasn't certain.

1 person likes this

Share this post


Link to post
Share on other sites
2 hours ago, Maico1 said:

A 10 mm is all you need for the nut ......



It is a 10 mm nut like most Shimano LP reels. Good luck getting in there without the right socket, and not damaging the nut !! Shimano did not include the socket with the reel just for fun.

1 person likes this

Share this post


Link to post
Share on other sites

Actually I have a collection of those little sockets as it started about 11-12 years ago when the DC 7 first came out. That so called socket is a pita having to insert a handle into it to make it work. A nut driver with a 10mm thin walled socket is a lot easier to use and certainly was not to hard figure that out......

1 person likes this

Share this post


Link to post
Share on other sites


1 person likes this

Share this post


Link to post
Share on other sites

... I was looking forward to the "feel" off... I guess it feel the same as the US version.

1 person likes this

Share this post


Link to post
Share on other sites
6 minutes ago, Bass Turd said:

... I was looking forward to the "feel" off... I guess it feel the same as the US version.

Of the 16....if so there is no US version.

Share this post


Link to post
Share on other sites
3 minutes ago, Maico1 said:

Of the 16....if so there is no US version.

I guess it feel Japanese then.

1 person likes this

Share this post


Link to post
Share on other sites
7 hours ago, Maico1 said:


Looks like you have dealt with this issue before as well. Do you know the part number I need for the nut? Jun from japan tackle has been awesome so far. But he sent me the schematic for the 2007 version, but I don't think the part is the same. Ours doesn't have the spool tension knob, and looks like the handle is held on differently.Thank you for your help!



Do you think this would work to get me up and running again?

https://www.amazon.com/Klein-Tools-630-10MM-Cushion-Grip-Hollow-Shank/dp/B0009ORXRU/ref=sr_1_3?ie=UTF8&qid=1490137122&sr=8-3&keywords=10+mm+nut



https://www.amazon.com/304HC-Stainless-Steel-Nylock-Lock/dp/B00NQ9JT40/ref=sr_1_2?ie=UTF8&qid=1490137122&sr=8-2&keywords=10+mm+nut

Share this post


Link to post
Share on other sites
1 hour ago, Stephen Selph said:

Looks like you have dealt with this issue before as well. Do you know the part number I need for the nut? Jun from japan tackle has been awesome so far. But he sent me the schematic for the 2007 version, but I don't think the part is the same. Ours doesn't have the spool tension knob, and looks like the handle is held on differently.Thank you for your help!



Do you think this would work to get me up and running again?

https://www.amazon.com/Klein-Tools-630-10MM-Cushion-Grip-Hollow-Shank/dp/B0009ORXRU/ref=sr_1_3?ie=UTF8&qid=1490137122&sr=8-3&keywords=10+mm+nut



https://www.amazon.com/304HC-Stainless-Steel-Nylock-Lock/dp/B00NQ9JT40/ref=sr_1_2?ie=UTF8&qid=1490137122&sr=8-2&keywords=10+mm+nut

The nut you are looking for is the exact same one that is on the 12 Antares HG which matches the color of the one you lost. That part number is BNT 4694 and you should be able to get it from Shimano USA.....

Check this site out.......https://fishshop.shimano.com/vip/landing.jsp



1 person likes this

Share this post


Link to post
Share on other sites
3 minutes ago, Maico1 said:

The nut you are looking for is the exact same one that is on the 12 Antares which matches the color of the one you lost. That part number is BNT 4694 and you should be able to get it from Shimano USA.....

Check this site out.......https://fishshop.shimano.com/vip/landing.jsp



You sir are a life saver! That's the only part I need to put the handle, drag star and spring back in correct? Seems too easy. I went ahead and ordered the part. Thank you.

Share this post


Link to post
Share on other sites

Yes provided you have the nut retainer and the screw that holds it on....





1 person likes this

Share this post


Link to post
Share on other sites

As for the tools go to your local sears and get # 43393 1/4 nut driver and a deep thin walled 10MM socket #34624.....

1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, Maico1 said:

Yes provided you have the nut retainer and the screw that holds it on....







52 minutes ago, Maico1 said:

As for the tools go to your local sears and get # 43393 1/4 nut driver and a deep thin walled 10MM socket #34624.....

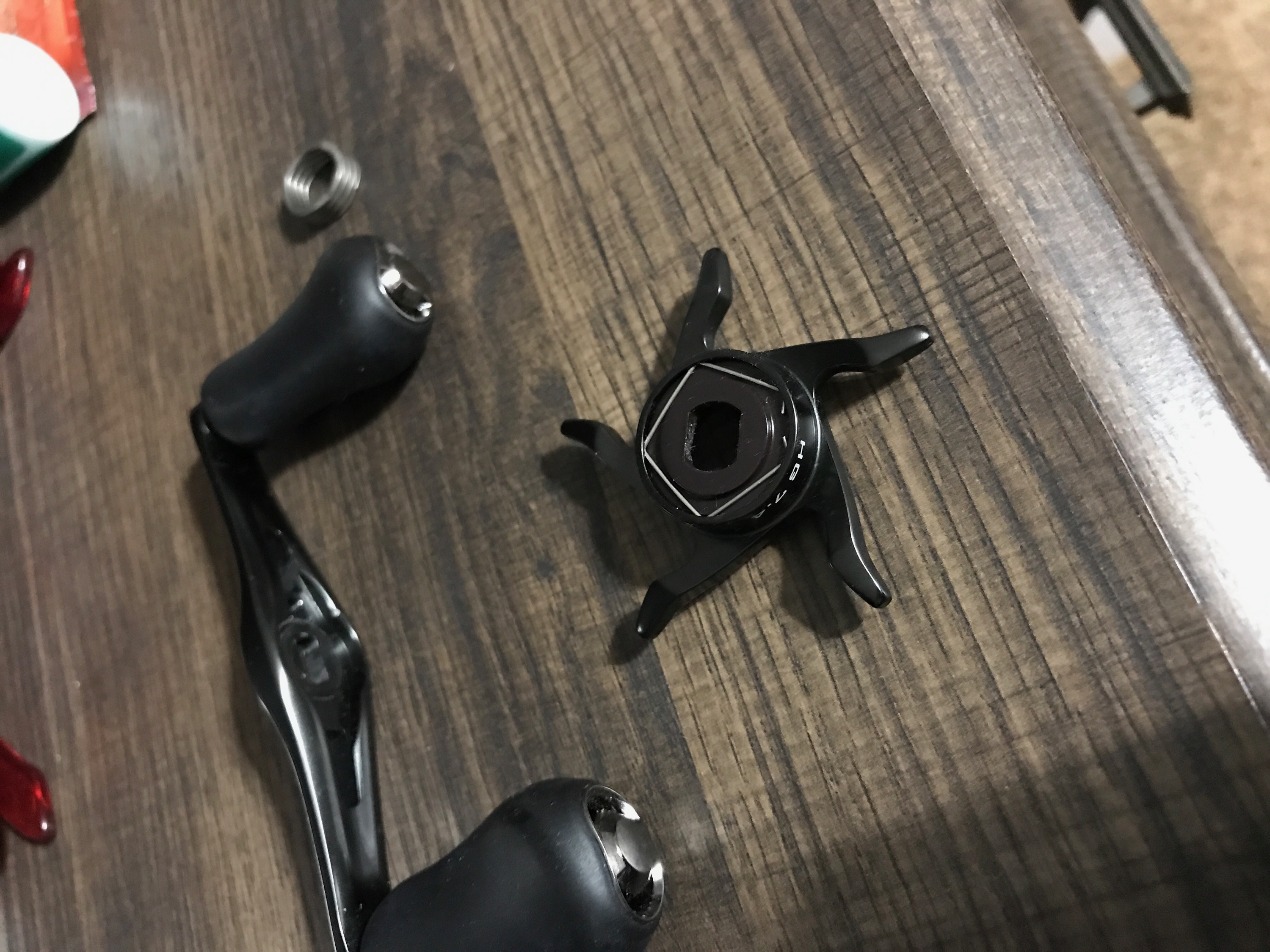

These are the parts I have, I think the only piece I'm missing is that nut. Do you see anything else I'm missing?






Share this post


Link to post
Share on other sites
1 hour ago, Maico1 said:

Yes provided you have the nut retainer and the screw that holds it on....







X2- Correct me if I'm wrong, but I think you will want to get these parts as well to prevent a repeat of the same situation.

1 person likes this

Share this post


Link to post
Share on other sites
10 minutes ago, J._Bricker said:



X2- Correct me if I'm wrong, but I think you will want to get these parts as well to prevent a repeat of the same situation.

Wonderful, I should have waited a few minutes before hit submit on the order. I will call them tomorrow and see if they will let me add those two parts to the order so I don't have to pay shipping twice. $8 shipping to send a 10mm nut! lol

Are those two parts more cosmetic than anything, or do they provide more of a function to keep the nut from coming loose?

Share this post


Link to post
Share on other sites

I believe they keep the nut from coming loose...

Share this post


Link to post
Share on other sites
23 minutes ago, Stephen Selph said:



These are the parts I have, I think the only piece I'm missing is that nut. Do you see anything else I'm missing?






You are clearly missing the nut retainer and the screw that secures it to the handle.... yes they have a function and are the reason you lost the nut.

1 person likes this

Share this post


Link to post
Share on other sites
