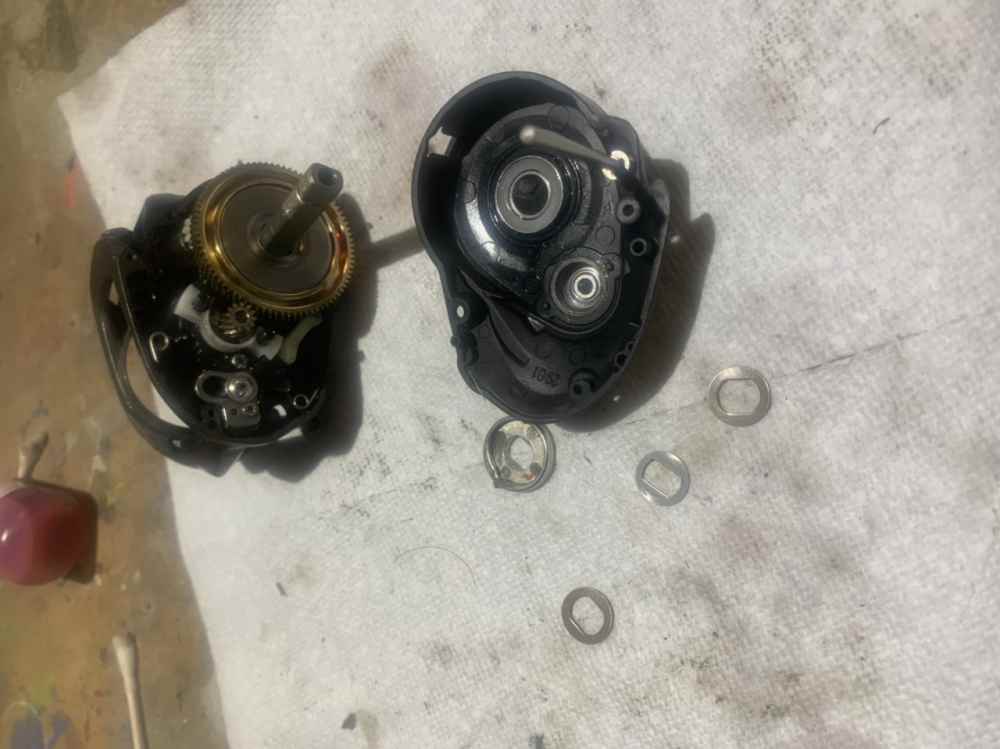

Ok, so i took apart my lsf speed spool for a cleaning (sounded like crap) one of the pieces i took off though i dont remember how it came off. (Yes i know take your time and take pictures). The pictures show the pbushing and washers i cant figure out. The lews schematics arent very clear, mainly because i couldnt find find one for my specific reel. Any help would be appreciated.

I believe this is this the schematic



https://www.lews.com/globalassets/lews-catalog/ssi1h/ssi1h-ssi1sh-manual.pdf



Hope this helps.





And this as well....  Drag crush washers should look like this  ()  when reassembled.  If the spacer washer that goes under the handle is bent and the crush washers are flat, the drag has been set too tight (edit..... or the handle nut is over tightened) then all three washers should be replaced.







The sleeve stuck in the AR gets slid onto the shaft. Replace side plate, click plate large side up, spring washers as shown prior, flat washer, drag star, handle washer, handle, nut, retainer.

No offense meant but this is exactly why I prefer professional help? Wishing you the best of luck??

None taken. But the only way to learn is to do.

3 hours ago, Eric 26 said:

No offense meant but this is exactly why I prefer professional help? Wishing you the best of luck??

Lots of people like to do their own work.  Personally I've never been one to tinker so I prefer using professionals even tho it would save me a bundle if I did my own work.



Maybe when/if I retire I can get into at least doing the cleaning part myself.
