What fishfinder up front connected to the Ulterra & installed in dash?


Recommended Posts

  • Super User

I've decided I might want to add a fish finder to my Ulterra in case I fish deeper.





I'm getting a Helix 10 for the dash. Should I get another Helix 10 for the front to connect to the Ulterra?







And should I mount it in the dash spot for fish finders up front or on a bracket?

Link to comment
Share on other sites

  • Super User

If you have the ability to mount it in-dash, I would go that route.  Its a little tougher to put in and take on on a seasonal basis, but I prefer the clean look and the ability to hide cords.  Also, its less likely to be stolen when flush mounted because its quite a bit harder to remove.



Another helix sounds like a good idea especially if you already have one and are familiar with it.  You will be able to link it to the Ulterra and your other existing helix.

Link to comment
Share on other sites

  • Super User

The only reason to not go humminbird for the second one is if you're putting in live imaging and want to go with LVS34 (or 60).  Otherwise, a networked set of humminbirds with an ulterra is the way to go.  Then you just need to decide helix vs solix with the main difference being touch screen (and associated price).  I'd go helix all day for the one in the front since you're not touching and adjusting it that much.

Link to comment
Share on other sites

  • Super User
9 hours ago, Born 2 fish said:

Are you networking everything together?



Gonna try.





They said 2 Helix 10's would work together so I went with that.



I also ordered a RM mount since it doesn't go in the dash on the be like I thought.

Link to comment
Share on other sites

I went with bow and console mounted Helix 9's, and they are networked and connected to the Ulterra. I really like it (although still figuring out all the features and neat things). I do have the ethernet hub. Decided to have the dealer install when I was purchasing the boat.



Considered Helix 10's, or Solix, but opted for 9's to save a little $ for elsewhere in the budget.








Link to comment
Share on other sites

  • Super User

@tcbass

I have been running two (Console & Bow) flush mounted helix 10's for going on 8 seasons.

IME (like most anything) there's Pro's & cons.

Pros

I like the clean look.

I like the open visibility during travel without having multiple units that I'm 'looking around';

to see what's a head.

The unit's are out of the way, especially up forward which aids in a smooth fish landing for me.

Con's

Removal for any reason in a PIA (could also be a Pro).

But I'm talking about if & when a unit may need repair.

Finally, some folks 'remove' the units for travel.  And I think that's a really good idea.

Depending on the terrain, flush mounted units endure quite a bit of vibrating while trailering.

May even lead to premature failure (which is what I believe happened in two of the 4 units I've had on this rig).  Despite not driving like I'm participating in the Baja 500,

some bouncing & vibration is unavoidable, especially up here.

Northern Michigan roads are notoriously bad, in particular many lake access roads.

Either way, I weighed all that and still prefer it this way

YMMV

Good Luck

:smiley:

A-Jay





large.ZZZConsoleunit1.jpg.06eb2d65639e6c1f4382843552d0f0fc.jpglarge.ZZZBowunit1.jpg.4f6d35c2e7489fbcc4a09ebee34836ac.jpg

  • Like 1
Link to comment
Share on other sites

I have two helix 10’s on my dash and one helix 7 at the bow for now all networked together with my ultrex with link. I personally don’t like flush mounting the units sometimes it’s nice to change the angle in the sunlight.



10 hours ago, tcbass said:



Gonna try.





They said 2 Helix 10's would work together so I went with that.



I also ordered a RM mount since it doesn't go in the dash on the be like I thought.

Your going to need a Ethernet hub if your going to have both Helix’s and your trolling motor networked together.

Link to comment
Share on other sites

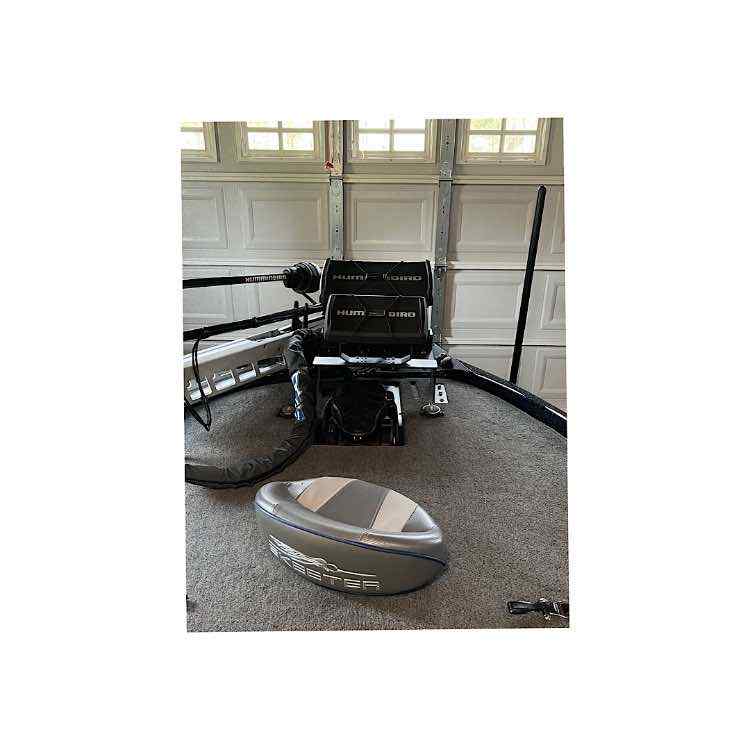

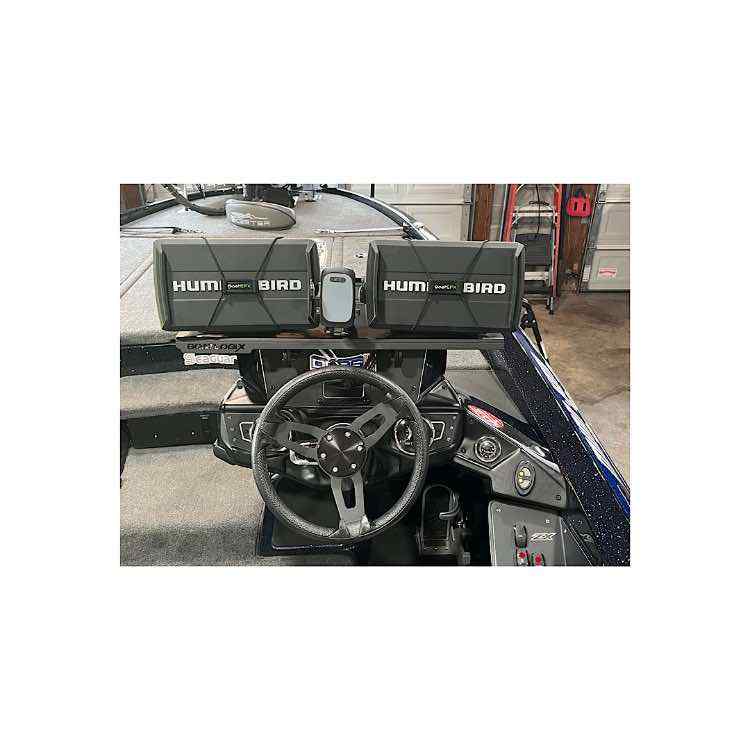

IMG_2024-03-30-134024.jpeg.faa14284bb67545101add17fa2eaca7a.jpegI like flush mount at console but because I run 2 on the console there’s not enough room for flush mount. On the bow I run 2 and I use bracket mount for the same reason as stated above I can change the angle if necessary.  Either way you’ll appreciate having grafts on both console and bow.




Link to comment
Share on other sites

  • Super User
6 hours ago, Born 2 fish said:

I have two helix 10’s on my dash and one helix 7 at the bow for now all networked together with my ultrex with link. I personally don’t like flush mounting the units sometimes it’s nice to change the angle in the sunlight.



Your going to need a Ethernet hub if your going to have both Helix’s and your trolling motor networked together.





Really?





I saw they added an ethernet cable.

Link to comment
Share on other sites

55 minutes ago, tcbass said:





Really?





I saw they added an ethernet cable.

Yes really you can network your two helix’s together or one helix and your T/M but you can’t add any more than two pieces of networkable equipment without the Ethernet hub.

Link to comment
Share on other sites

Also you will need Ethernet adapters for each helix.

Humminbird 720074-1 AS EC QDM 700 Series Ethernet Adapter Cable

Link to comment
Share on other sites

  • Super User
7 hours ago, Born 2 fish said:

Also you will need Ethernet adapters for each helix.

Humminbird 720074-1 AS EC QDM 700 Series Ethernet Adapter Cable





So, I'll need 2 internet adapters and a hub to run the 2 Helixs and Ulterra?

Link to comment
Share on other sites

7 hours ago, tcbass said:





So, I'll need 2 internet adapters and a hub to run the 2 Helixs and Ulterra?

You need a Ethernet Hub and a Ethernet cable for each piece of equipment and the two adapters



so you need

1 Ethernet switch hub 5 port

2 total Ethernet adapters

3 total Ethernet cable’s

  • Like 1
