With the rods I have, and the ones I'm going to order this shopping season...the 16 spot rack I made a couple years ago is gonna run out of room.



So, decided to make a new one with more spots, and decided to do it right.

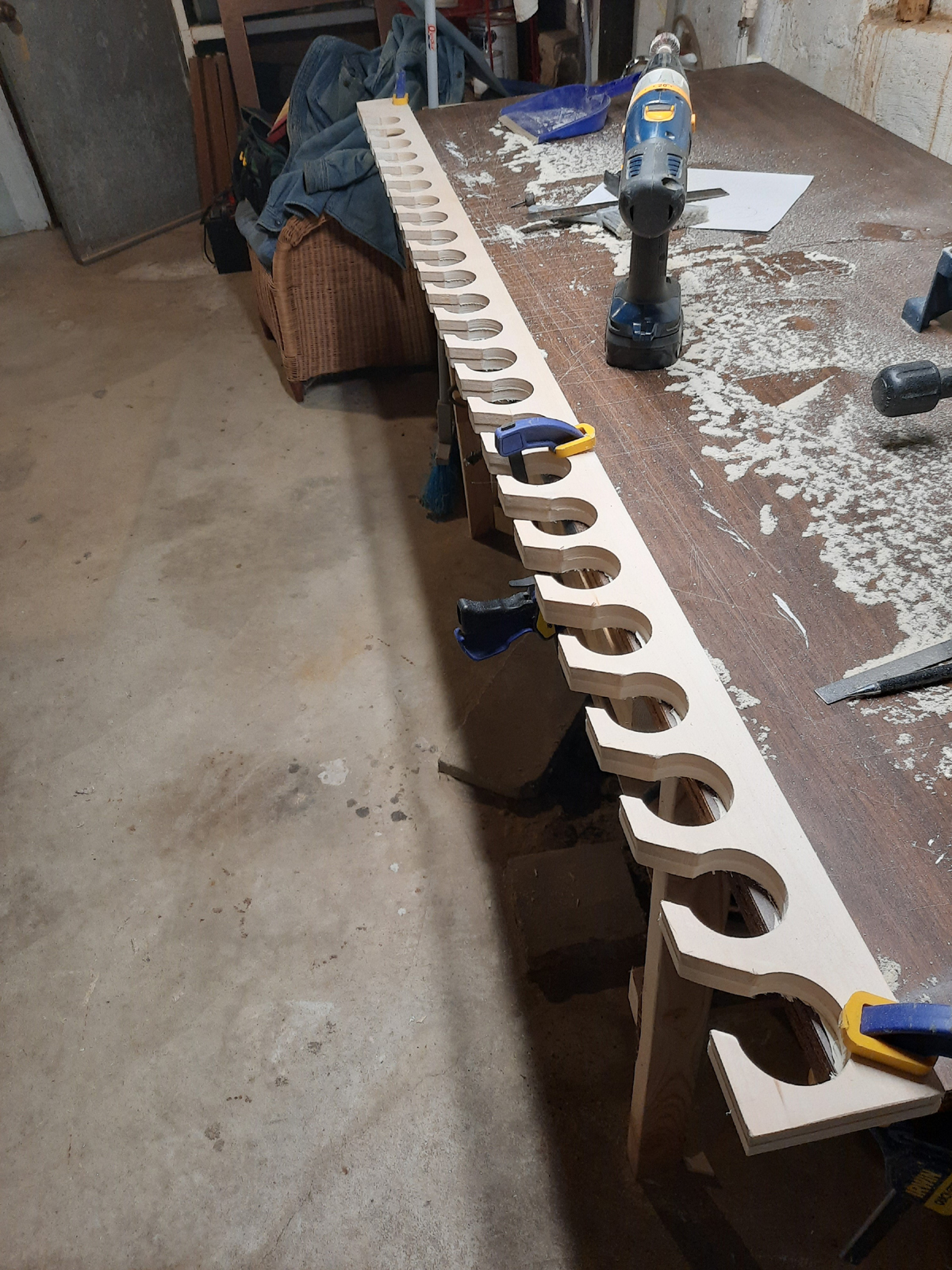

This is phase-1 of the build...side uprights. Yes, there's two there clamped together for drilling/cutting so that they're identical.



24 slots in 6' - end of the year I'll have 19 rods...so some room for expansion of my arsenal.

Looking good Ken. Will this hang from the ceiling?

7 minutes ago, volzfan59 said:

Looking good Ken. Will this hang from the ceiling?

No, this will be a wall-mount...I'm keeping the other one for 'overflow' once I get there....back-up rods and maybe the crappie rigs....that'll be mounted to the ceiling.

Should be a nice winter project

Just now, slonezp said:

Should be a nice winter project

Oh this only one of several projects I have lined up...should have this done by the end of the month, then it's on to project #2

Make sure to post pics when you’re done ??

Looking good, and nice work.

Looking sharp

Looks great man.  Keep up the great work and looking forward to seeing it done

19 hours ago, JackstrawIII said:

Make sure to post pics when you’re done ??

^^^

'Cause a bunch of us are going to copy you...?

20 minutes ago, BigAngus752 said:

^^^

'Cause a bunch of us are going to copy you...?

You want detailed instructions?

3 hours ago, MN Fisher said:

You want detailed instructions?

 If it comes out well and you’re pleased with the results, then yes of course!!


Because yes, I’ll be copying you

I wouldn't have the room to put something like that for mine.  I used 3/4" PVC pipe, some Tee connectors and elbows to make some racks to hang down from the ceiling of my shop just a little over head high.  There are two rows, one on top of the other about 8" apart, 6' wide.  I probably have 40 rods and reels in it.  They are up out of the way and easy enough to just slide them out when I want them.  Most are in rod sleeves so don't have to worry about them getting tangled up.

Nice.

Quality work as usual. ?

2 hours ago, Way2slow said:

I used 3/4" PVC pipe, some Tee connectors and elbows to make some racks to hang down from the ceiling of my shop just a little over head high.

Ya - the Mark-1 in the garage was just that. The Mark-2 is the 16 slot with through holes on one board, brass hooks on the other. This will be moved to the ceiling in the 'fishing room' for over-flow.



I've dedicated a 8.5' x 11' spot in the basement, walled it off - that's the fishing room. During the winter, my gear is stored in there, including all the boat gear that gets pulled out (PFDs, Sonar, batteries, etc)

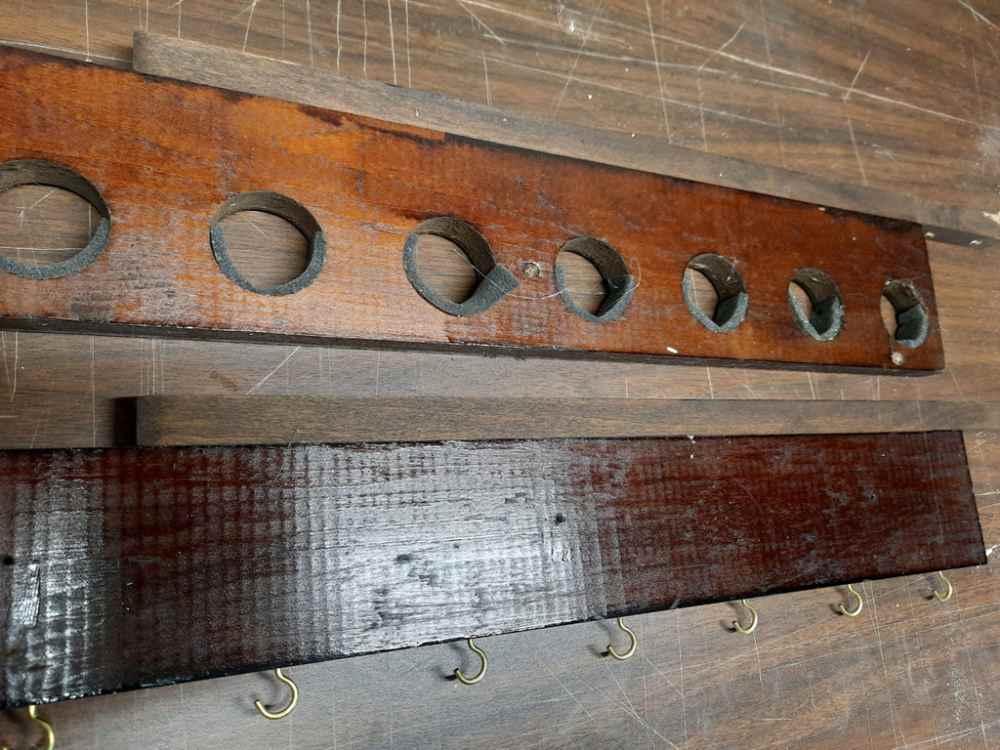

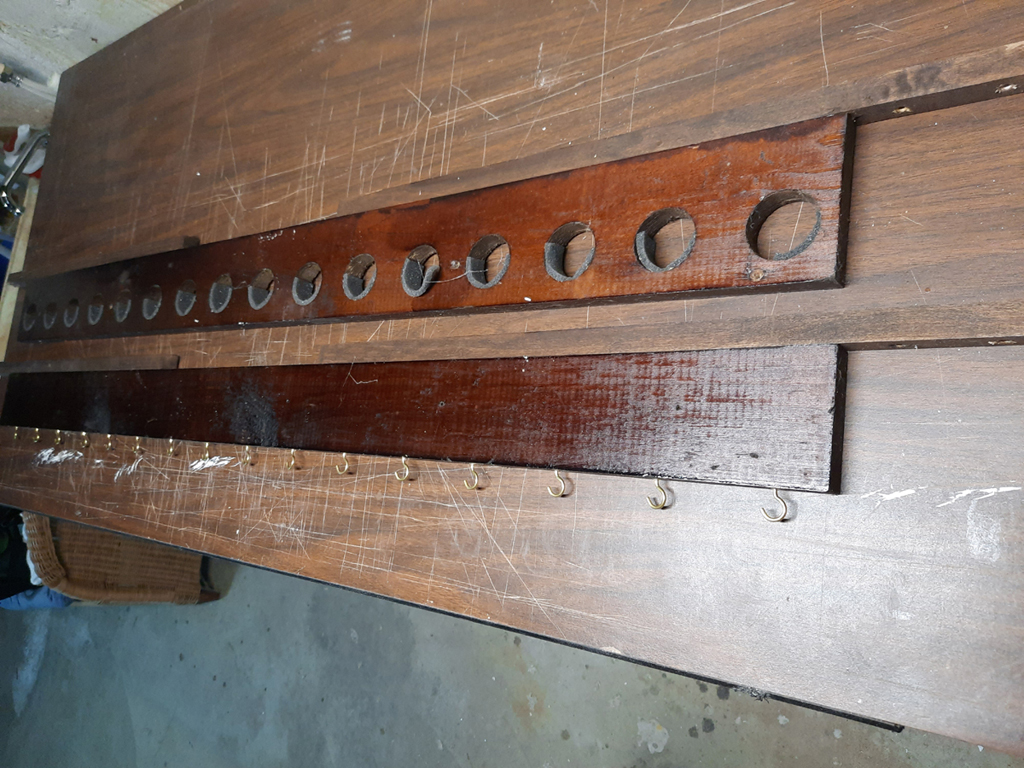

Sanding is finally done...now on staining

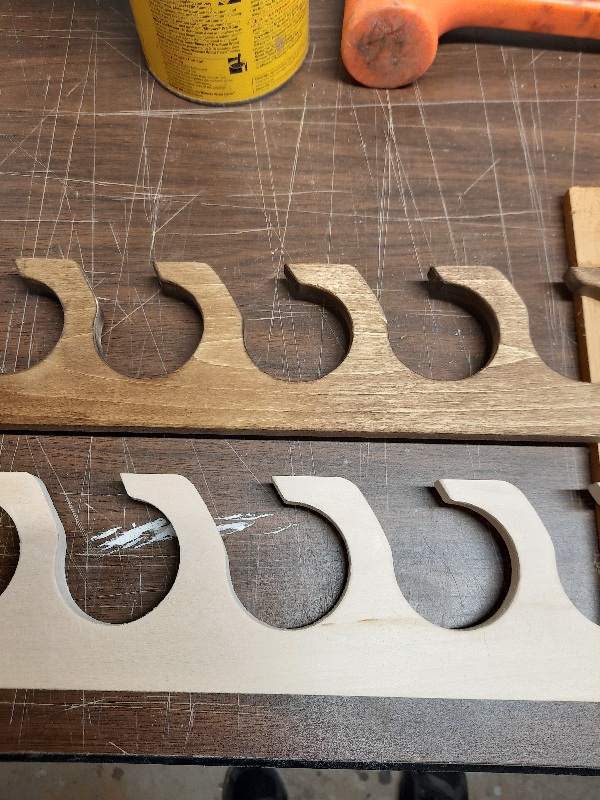

One side piece done, second about to start

Well its not quite a boat/trailer rebuild, but it would be tough to top that.



I hang my rod and reels to a ceiling mount very similarly to what yours looks like above.

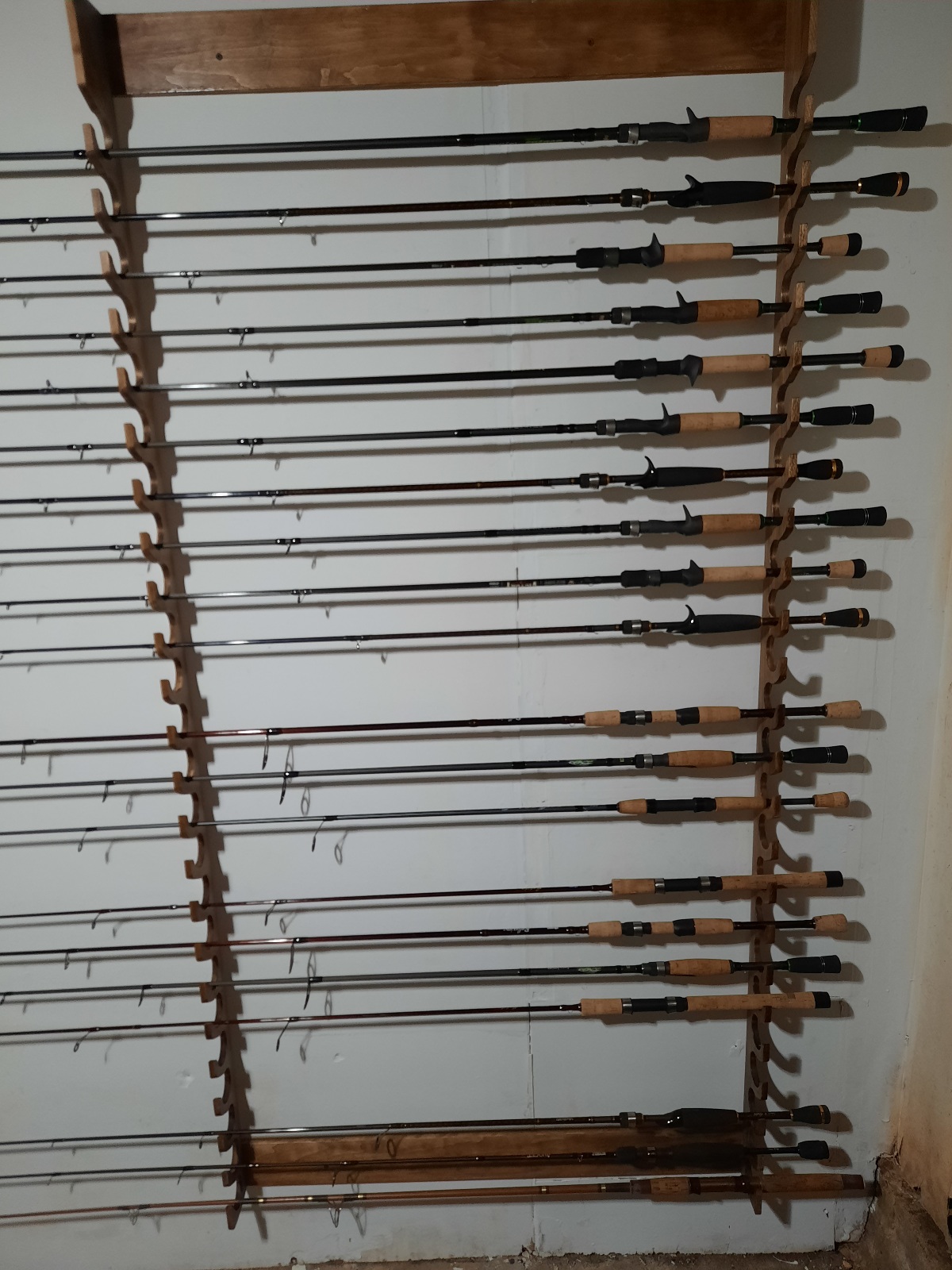

Done, mounted, and filled.

Looking for ideas, as I will be dedicating a small portion of my basement to consolidating my gear.  Right now, it's just stacked up in a corner and on a table.  I'd like to see more detail of your ceiling rack, as that might be the best option.  My only concern would be dust.  I'd also like to be able to store rigs with the reels attached.  Any ideas are welcome.

26 minutes ago, J Francho said:

I'd also like to be able to store rigs with the reels attached.  Any ideas are welcome.

I'll take some shots of the ceiling rack...when it was in the garage, I left the reels on between trips in the canoe...so it is capable of that.

1 hour ago, J Francho said:

I'd like to see more detail of your ceiling rack, as that might be the best option.

It's pretty basic

1x8 (what ever wood - nominal is 3/4"x7-1/2")

Rip to 4" and 3-1/2"

On the 4" wide piece, mark first drill spot 1-1/2" from long edge and 1-1/2" from one short edge...rest of holes are marked 1-1/2" from long edge and 3" from previous mark. This will give you 4 spots per 1' of length (mine is a 4', so 16 spots)

Drill holes with 2" hole saw

To back edge, mount some 1x1 so that 6" extends beyond the short edges

On the 3-1/2" wide piece, mark drill spots along the long edge, 1-1/2" from one end and every 3"

Drill pilot holes with 1/16" bit

To back edge, mount some 1x1 so that 6" extends beyond the short edges



Paint/stain to your desired color, then seal. I like water-based Spar Urethane for this, but any water based Polyurethane sealer will work.



Into the pilot holes on the narrow piece - install small, brass cup hooks

If you want (I did) get some narrow, sticky-back foam an put in the 2" holes on the wide piece.

Drill pilot holes in the 1x1 - 1" from outer end, then 4" in from that.

Mount to ceiling (or wall, the cup hooks work there as well.

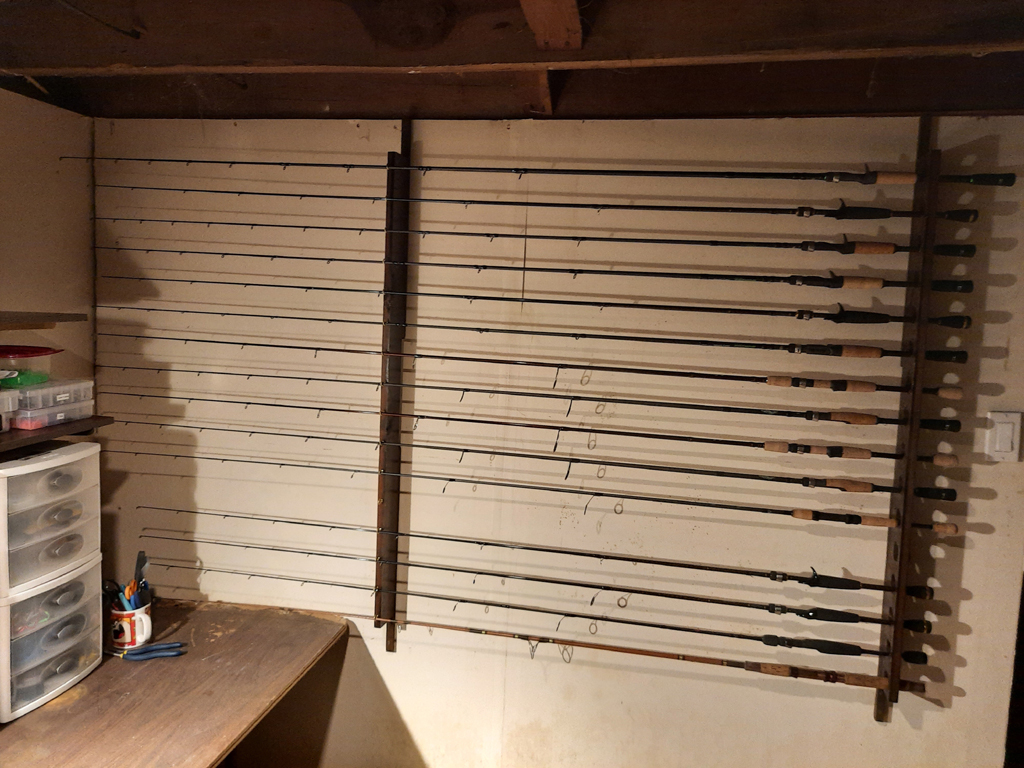

This shows it wall-mounted

2 hours ago, J Francho said:

I'd also like to be able to store rigs with the reels attached.

I have a rack that is similar to what @MN Fisher looks like, except mine is ceiling mounted.  If you leave enough space in between the individual holders, you can keep the reels on them since gravity will hold them straight downward.

3 minutes ago, gimruis said:

I have a rack that is similar to what @MN Fisher looks like, except mine is ceiling mounted.  If you leave enough space in between the individual holders, you can keep the reels on them since gravity will hold them straight downward.

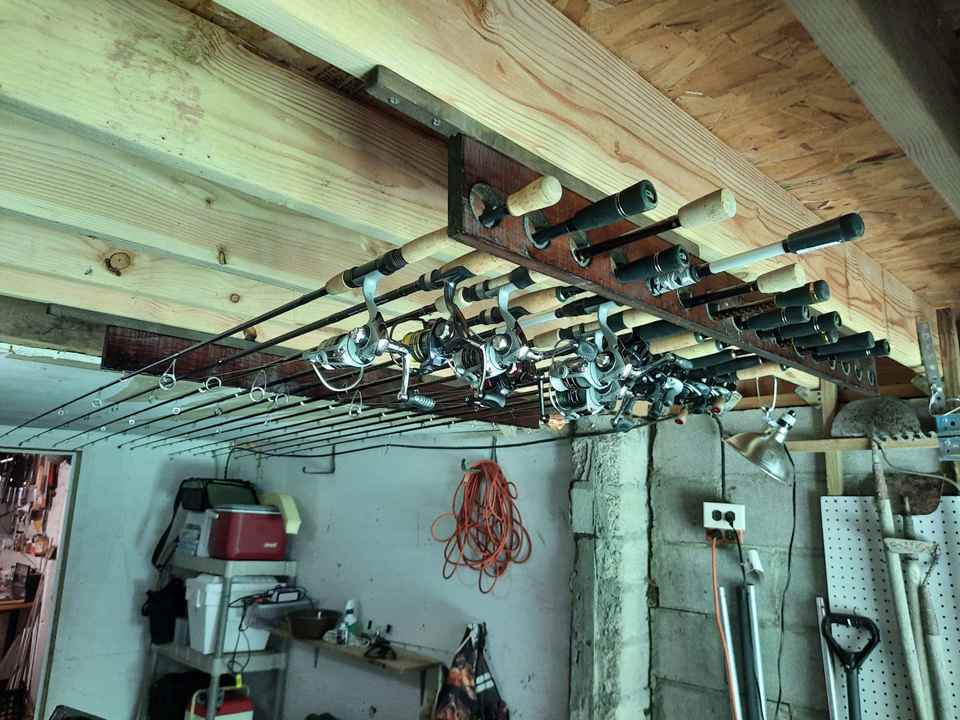

Here's the MK-II in ceiling formation...with reels.

Thanks gentlemen!
