  • Super User
5 minutes ago, gimruis said:

When is the maiden voyage Ken? Another month or so?

About that - I'm working like mad (and having to re-do things occasionally) to get it done before bass opener. Would like to have it on the water before that for final testing and tweaks if needed.

  • Like 2
Link to comment
Share on other sites

  • 2 weeks later...
  • Super User

The battery platform is cut out, 2-coats of Spar Urethane on top-side, 2nd coat on underside is drying now.



I've been cutting out templates from cardboard, rear section is almost done.

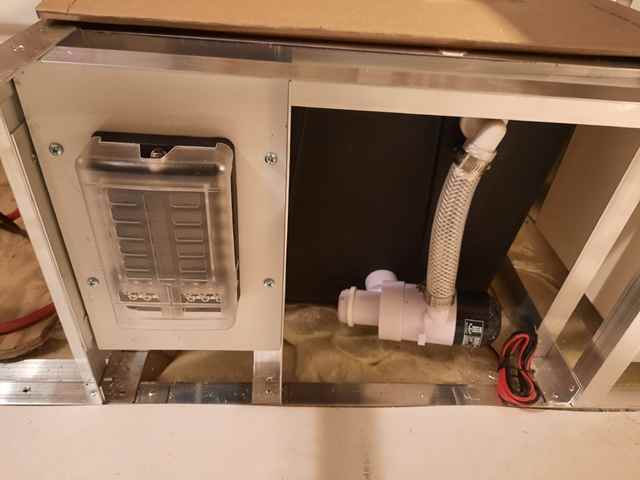

Starting to work on the electrical system. Mounted the fuse-box to a sheet of 1/4" HDPE.

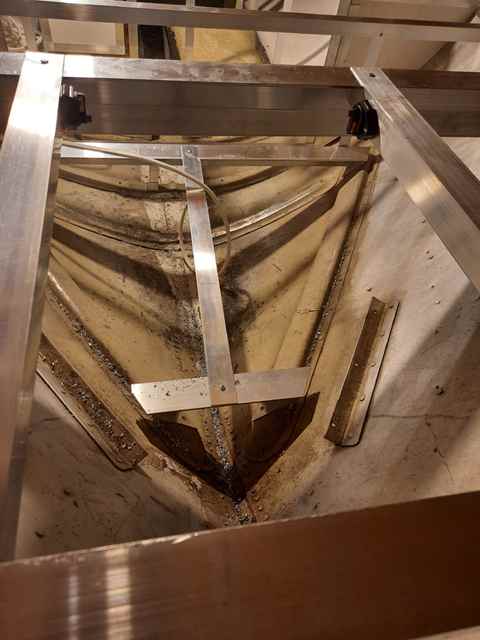

Main circuit breakers mounted to just inside where the hatch to the battery compartment will be.


Port side is the 50amp for the TM, starboard side is the 30amp for everything else.

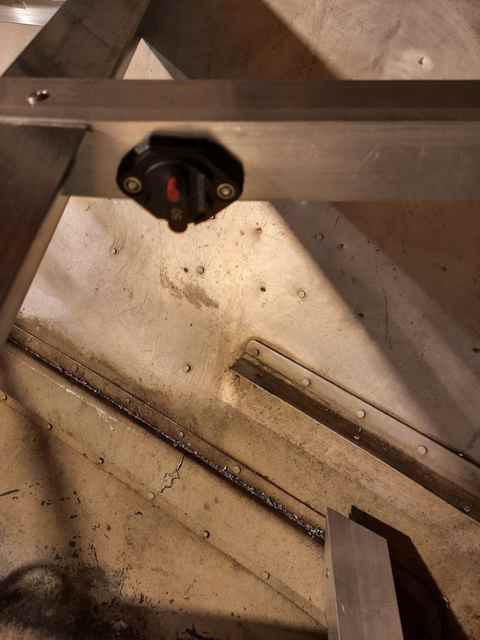

Close-up of the 50amp




Press the red 'test' button, a lever pops out to the right and the circuit is open, flip the lever back into it's slot and the circuit is closed. Used this way, it functions as a cut-off switch dispensing the need for a separate one.

  • Like 3
Link to comment
Share on other sites

  • Super User

Starting to cut the plywood. Battery platform is just sealed, no carpet on that. Above it is the TM platform - need to cut the hatch for access to the battery compartment then seal and carpet it.

I've also run the wire from the 30amp breaker to the fuse box, mounted the charger on another piece of 1/2" HDPE and run the charging connections.

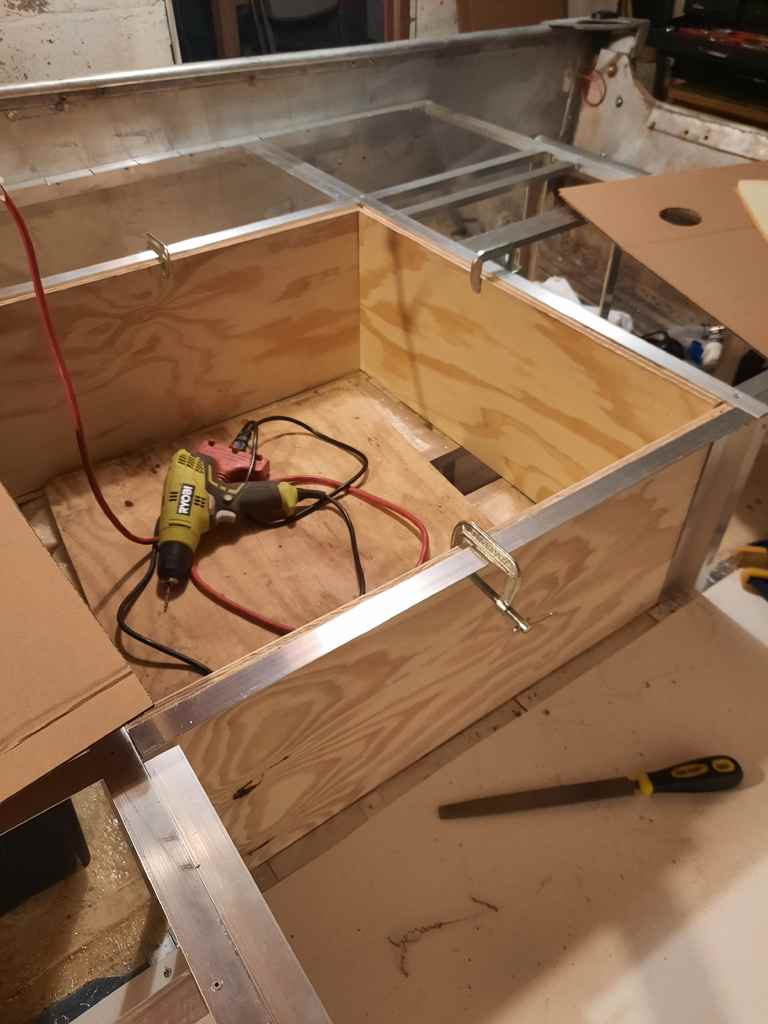

I've also started 'boxing in' the cockpit. All the pieces that are vertical will just be painted, no carpet.


  • Like 5
Link to comment
Share on other sites

  • Global Moderator
17 hours ago, MN Fisher said:

Starting to cut the plywood. Battery platform is just sealed, no carpet on that. Above it is the TM platform - need to cut the hatch for access to the battery compartment then seal and carpet it.

I've also run the wire from the 30amp breaker to the fuse box, mounted the charger on another piece of 1/2" HDPE and run the charging connections.




I've also started 'boxing in' the cockpit. All the pieces that are vertical will just be painted, no carpet.


Good looking sheet ‘o wood! I love the smell of marine grade in the mornings…….



robert duvall i love the smell of napalm in the morning GIF by The Good Films

  • Like 1
  • Haha 2
Link to comment
Share on other sites

  • Super User
3 hours ago, TnRiver46 said:

Good looking sheet ‘o wood! I love the smell of marine grade in the mornings…….



Except that's not Marine Grade, Russ - it's BCX



3 hours ago, volzfan59 said:

Ken, Your work looks great! That's going to be one heck of a rig. Thanks for sharing it.

Thanks, Steve...I'm doing my best and taking my time where possible.

Link to comment
Share on other sites

  • Global Moderator
30 minutes ago, MN Fisher said:

Except that's not Marine Grade, Russ - it's BCX



Thanks, Steve...I'm doing my best and taking my time where possible.

Aw heck, if you lived down the road I could have brought you lots of marine grade. Then again maybe BCX is better, I’ve never heard of it

Link to comment
Share on other sites

  • Super User
6 minutes ago, TnRiver46 said:

Aw heck, if you lived down the road I could have brought you lots of marine grade. Then again maybe BCX is better, I’ve never heard of it

Nope - Marine Grade is the highest level for this type of work. Next down is ACX which is both-sides sanded, then BCX which is one-side sanded.



While they all need to be sealed, Marine Grade is naturally more water resistant due to the different glue used.



Being on a tight budget - went with BCX and Spar Urethane



4'x8' sheet of 1/2"

Marine Grade - $99

ACX - $72

BCX - $50



Needing three sheets for this project - the 'savings' add up quick.

  • Like 1
Link to comment
Share on other sites

  • Global Moderator
10 minutes ago, MN Fisher said:

Nope - Marine Grade is the highest level for this type of work. Next down is ACX which is both-sides sanded, then BCX which is one-side sanded.



While they all need to be sealed, Marine Grade is naturally more water resistant due to the different glue used.



Being on a tight budget - went with BCX and Spar Urethane



4'x8' sheet of 1/2"

Marine Grade - $99

ACX - $72

BCX - $50



Needing three sheets for this project - the 'savings' add up quick.

Heard that. I think I gave 80 for a sheet of marine but that was a year or two ago . If you need it to be tougher just slather some resin on there, it’ll last half a century anyhow haha

Link to comment
Share on other sites

  • Super User

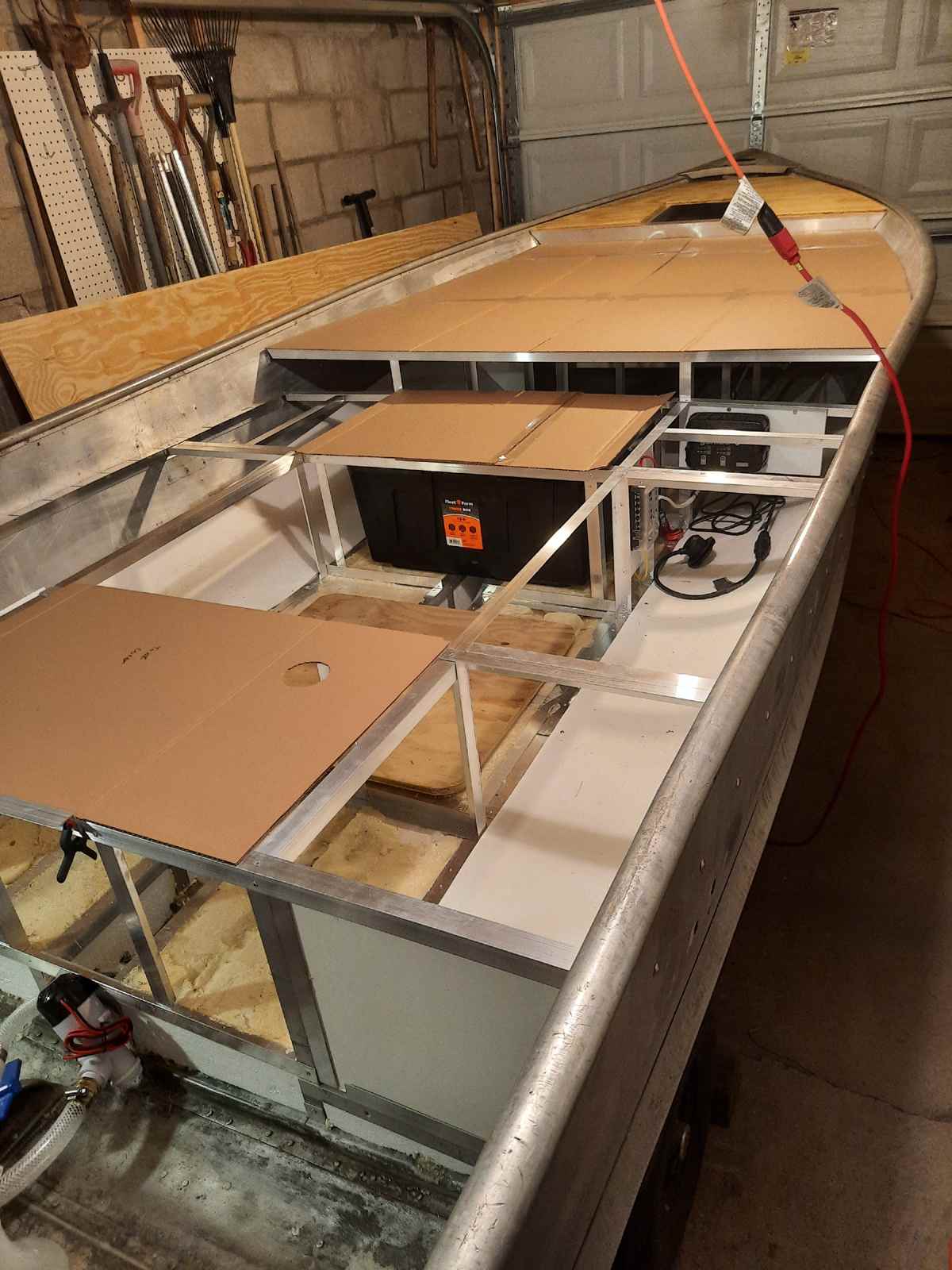

Taking a short break - and decided to show where I am



TM Deck cut, sealed...just need carpet

Hatch lid for battery compartment is on it's second coat of Varathane and is drying in the shop area

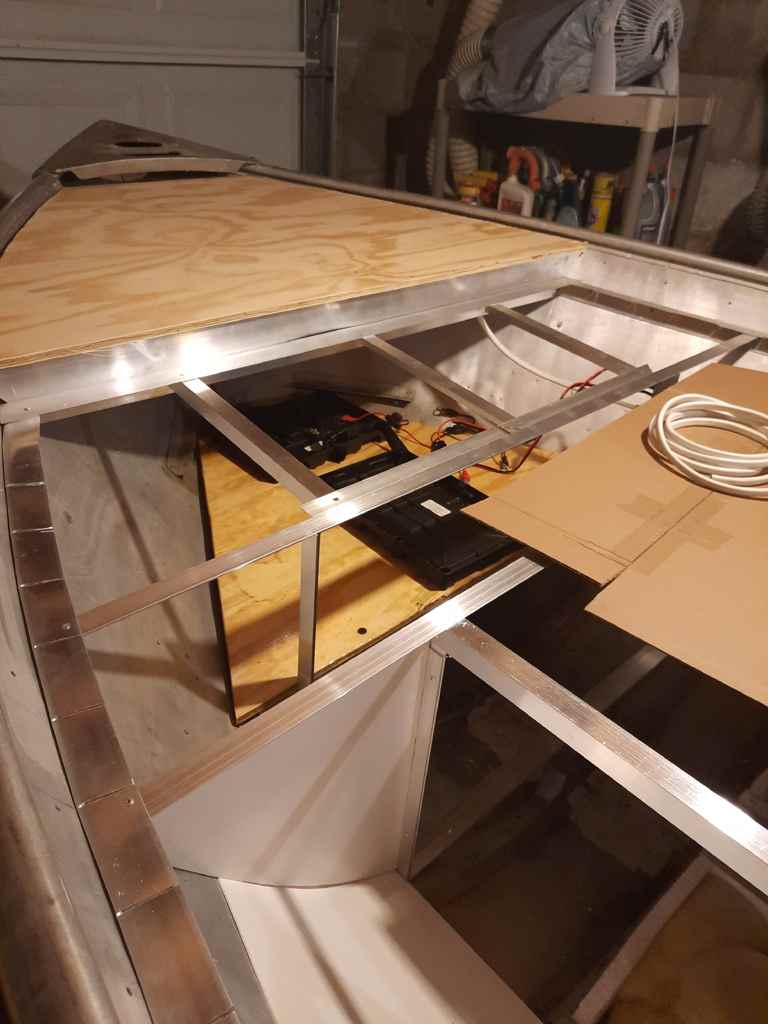

Basic templates for the casting deck, over the livewell and over the gas-tank are cut...still need to cut hatch openings

Fuse box and charger are in...got the 35ah battery in it's tray, connected to the charger and tested - A-OK

FRP on starboard side is cut and locked down




  • Like 4
Link to comment
Share on other sites

  • Super User

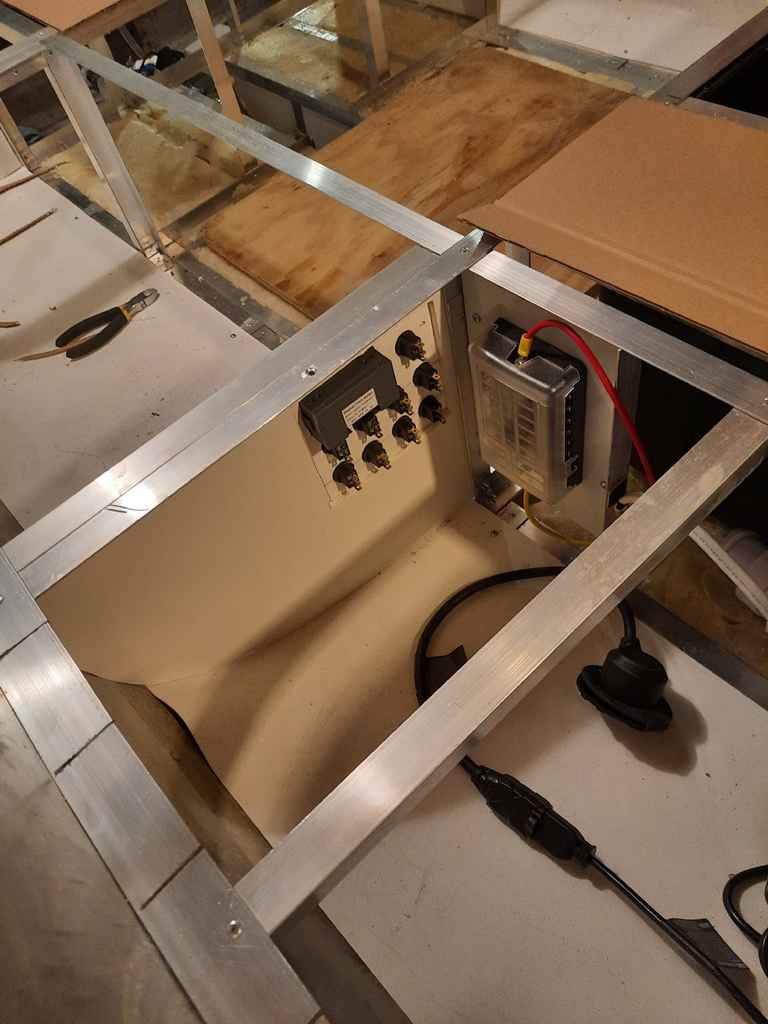

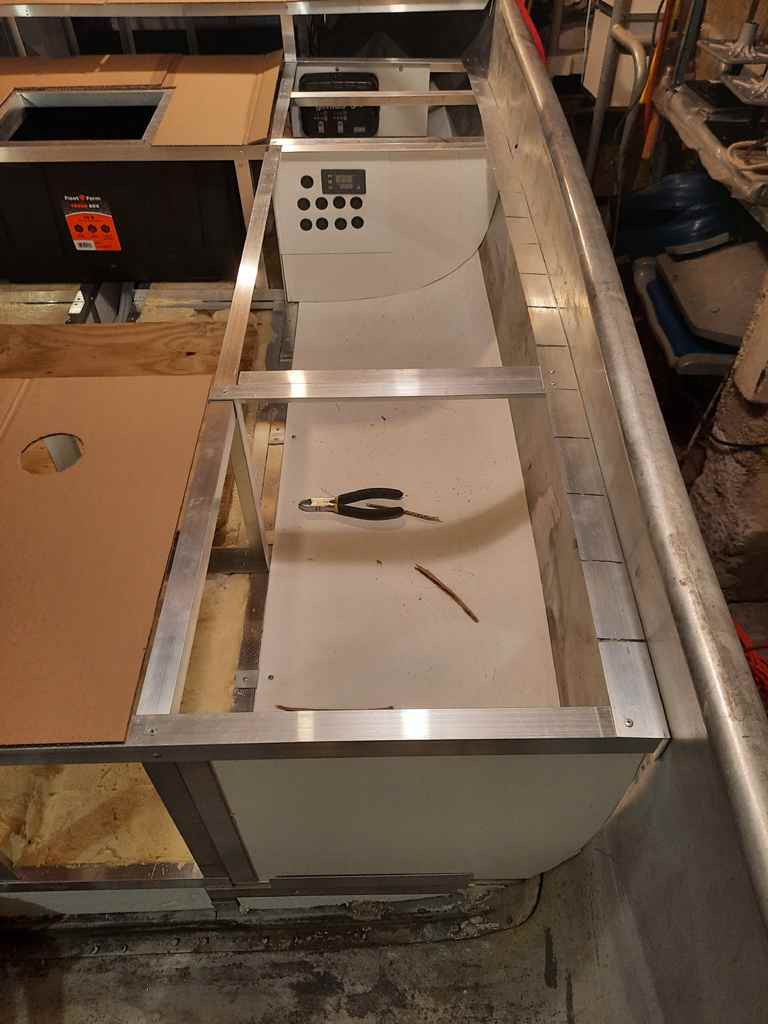

Need to install the electrical before mounting the deck pieces - so on the 1/4" FRP blocking the electrical compartment from the general storage compartment, I made a panel from 1/16" FRP and glued it in place.




Backside - it's a short distance to the fuse box from here.

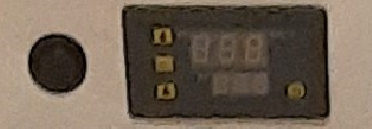

This part is the recirculating system. Switch connects/disconnects the pump from the programmable digital timer which controls the cycle. Timing has 5 modes and can be anything from 1sec to 999 hours. Selecting seconds for the timing type and Mode 5, the top window shows how long the circuit is active, the bottom shows how long the circuit is inactive before turning the circuit back on and repeating infinitely.

Setting 30 and 270 - it'll be 30 seconds of pump on, then 4:30 off...rinse and repeat.




  • Like 4
Link to comment
Share on other sites

  • Super User

No pics today - but items completed



Finished rigging power from the 35ah to the fuse box - had to get the right size ring terminals

Route cables and connect at load end to the following items - electrical compartment end is still 'loose'

 - Bilge pump - two cables...one supplies power for the float switch activation, the second allows me to engage the pump on manual

 - Livewell fill pump

 - Aft pole light

 - Aft USB ports...this plug in is for the aft camera and the tablet when I'm using it at the 'helm'



Cable for bow lights is run, but there's things I need to do like paint at least the first few feet of the outside hull at the bow before I can mount the lights and wire them in. It's a pair of short, strip lights that I'm mounting just under the rub-rail either side of the bow-cap...yes, they are USCG approved.



Link to comment
Share on other sites

  • Global Moderator
17 minutes ago, MN Fisher said:

No pics today - but items completed



Finished rigging power from the 35ah to the fuse box - had to get the right size ring terminals

Route cables and connect at load end to the following items - electrical compartment end is still 'loose'

 - Bilge pump - two cables...one supplies power for the float switch activation, the second allows me to engage the pump on manual

 - Livewell fill pump

 - Aft pole light

 - Aft USB ports...this plug in is for the aft camera and the tablet when I'm using it at the 'helm'



Cable for bow lights is run, but there's things I need to do like paint at least the first few feet of the outside hull at the bow before I can mount the lights and wire them in. It's a pair of short, strip lights that I'm mounting just under the rub-rail either side of the bow-cap...yes, they are USCG approved.



I think you’re  going to outer space instead of Minnetonka

  • Haha 1
Link to comment
Share on other sites

  • Super User
4 minutes ago, TnRiver46 said:

I think you’re  going to outer space instead of Minnetonka

For that I'd need a jet-drive - I'm just looking at a 15hp-20hp 2-cycle.

  • Haha 1
Link to comment
Share on other sites

  • Global Moderator
10 minutes ago, MN Fisher said:

For that I'd need a jet-drive - I'm just looking at a 15hp-20hp 2-cycle.

With a flux capacitor though, right?

  • Haha 1
Link to comment
Share on other sites

  • Super User
1 minute ago, 12poundbass said:

With a flux capacitor though, right?

I don't think I'll get anywhere near 88mph with this rig...

  • Like 1
Link to comment
Share on other sites

  • Global Moderator
5 minutes ago, MN Fisher said:

I don't think I'll get anywhere near 88mph with this rig...

Yeah but I don’t think a real Delorian could get to 88mph either. ?



back to the future GIF

  • Haha 2
Link to comment
Share on other sites

  • Super User
12 minutes ago, 12poundbass said:

Yeah but I don’t think a real Delorian could get to 88mph either. ?



back to the future GIF

Actually it will.... buddy of mine in the Air Force had one and one late night out west of Omaha, we hit 100 in that thing.
